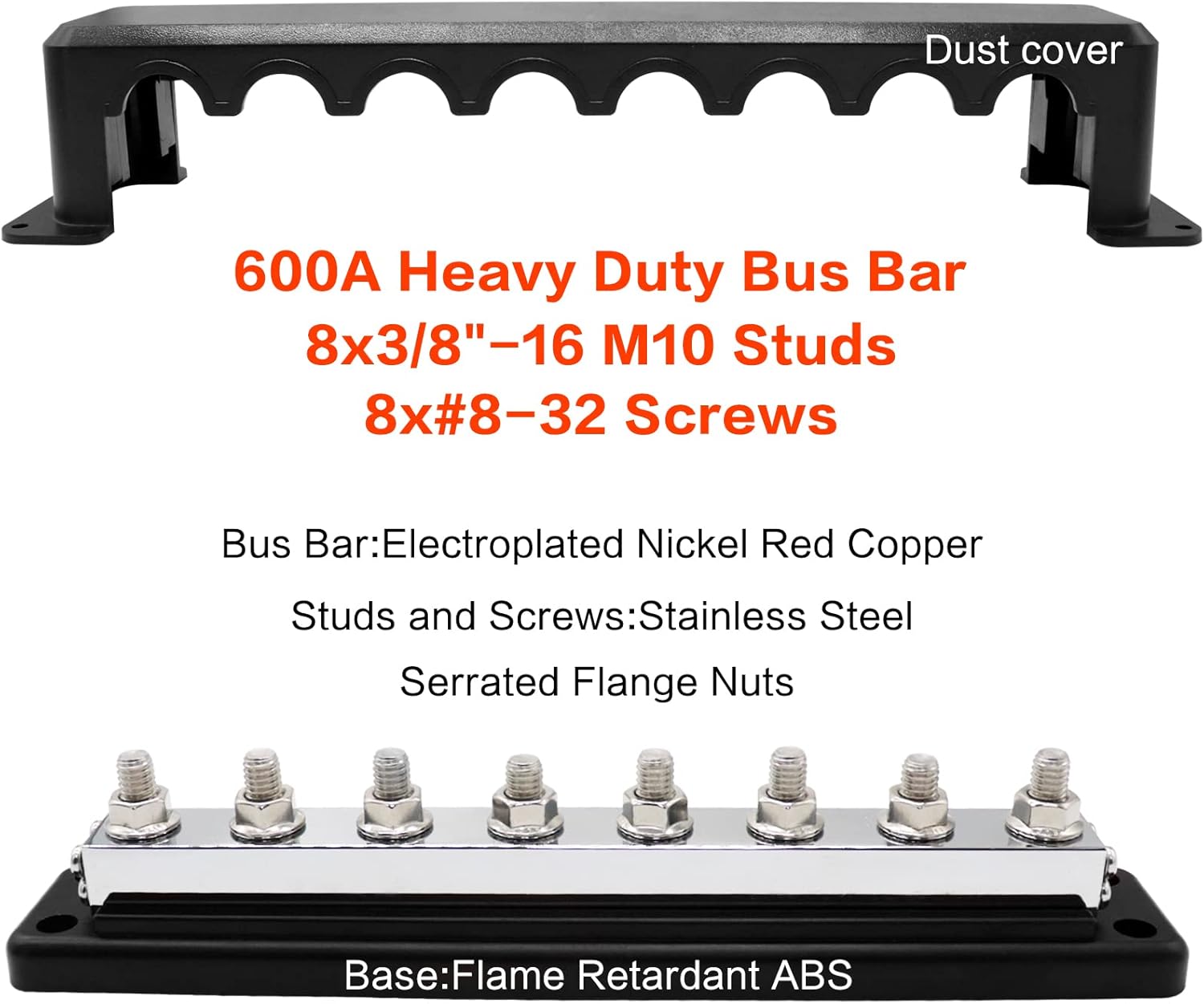

2 Pcs 600 A High Current Copper Bus Bar 300V AC / 48V DC 8 Way 3/8 inch (M10) Studs 8#8-32 Screws Electrical Terminal Ground Distribution Block Battery Buss Bars with Cover (Red & Black)
Product details
| Management number | 209176515 | Release Date | 2026/03/29 | List Price | $64.67 | Model Number | 209176515 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Bus Bar:A reinforced electrical connection method with high-power modular connection structural components;It improves electrical continuity and integrity by centralizing the management of multiple electrical devices

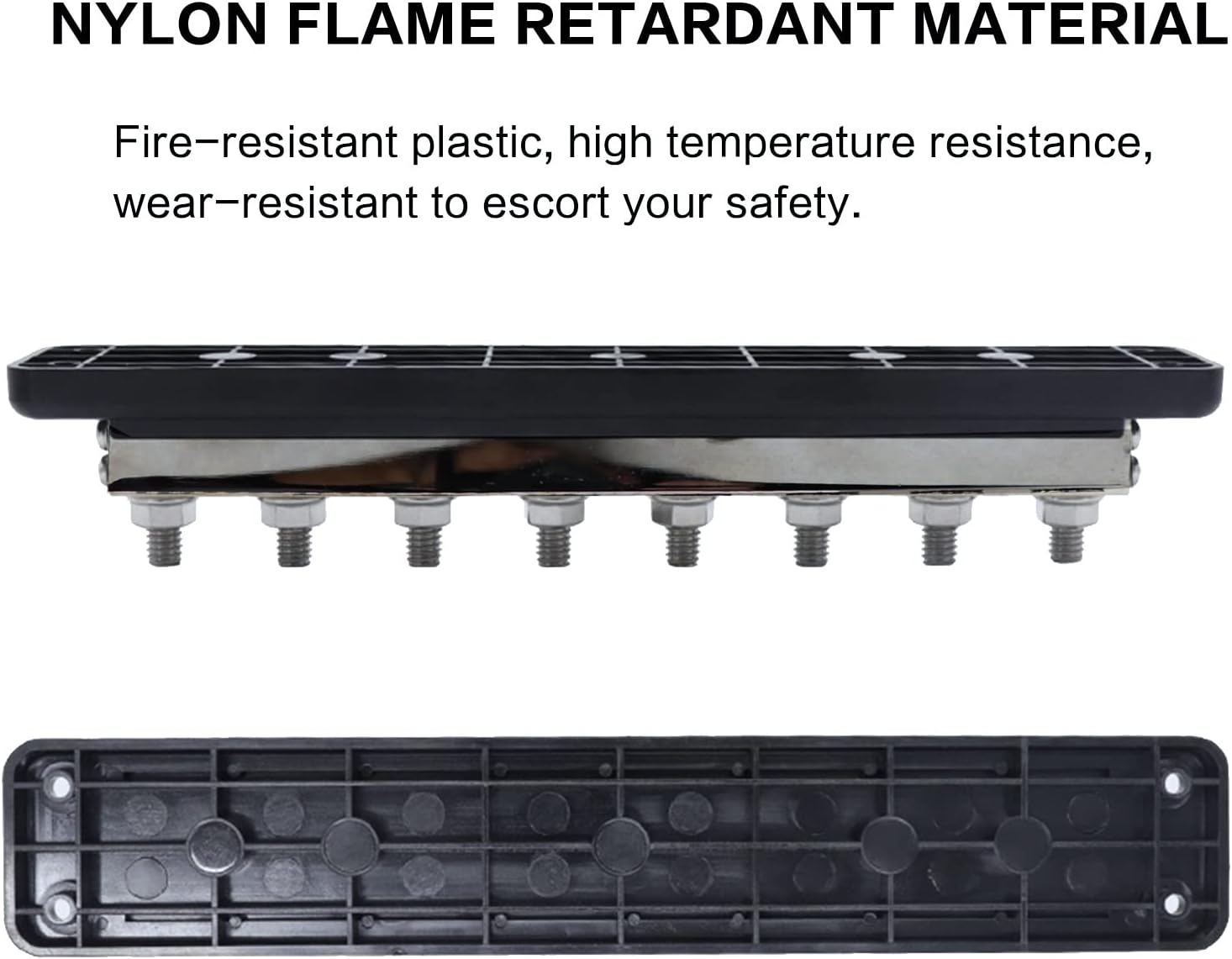

- Feature:0.748 inch/19mm thick nickel-plated copper distribution block,with high conductivity suitable for your high-power applications;The base and cover made of flame-retardant nylon glass fiber reinforced material ensure mechanical strength and durability
- Terminals:AMOMD rated current 600A busbar with M10 (3/8 inch) terminal studs (also applicable to M8) and 8 #8-32 screws ideal for multiple batteries wiring configurations,stainless steel material can enhance their corrosion resistance and rust resistance
- Specifications:Bus Bar Dimensions (L x W x H):289 x 51x 51 mm (11.37 inch x2.01 inch x2.01 inch);Stud size: M10 (3/8 inch); Max Operating Voltage:DC 48 V;Max Continuous Amp: 600 A
- Application:The 600 A Terminals busbar is universally wiring your custom power bank,camp trailer project,car,stereo setup,RV,vehicle,trucks,marine,yacht,fresh or salt water boats, solar panel to consolidate, distribute or protect your electrical system
| Color | Red&Black |
|---|---|
| Model | f723937c-f254-473d-b3ff-01b7536d78a0 |
| Voltage | 48 Volts (DC) |
| Brand Name | AMOMD |
| Part Number | US1-AOA1149CRB-Z |
| Manufacturer | AMOMD |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Sta |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 600 Amps |
| Number Of Poles | 8 |
| Centerline Length | 289 Millimeters |
| Specification Met | UL |
| Number Of Contacts | 8 |
| Number of Positions | 8 |
| Item Dimensions W x H | 2.01"W x 2.01"H |
