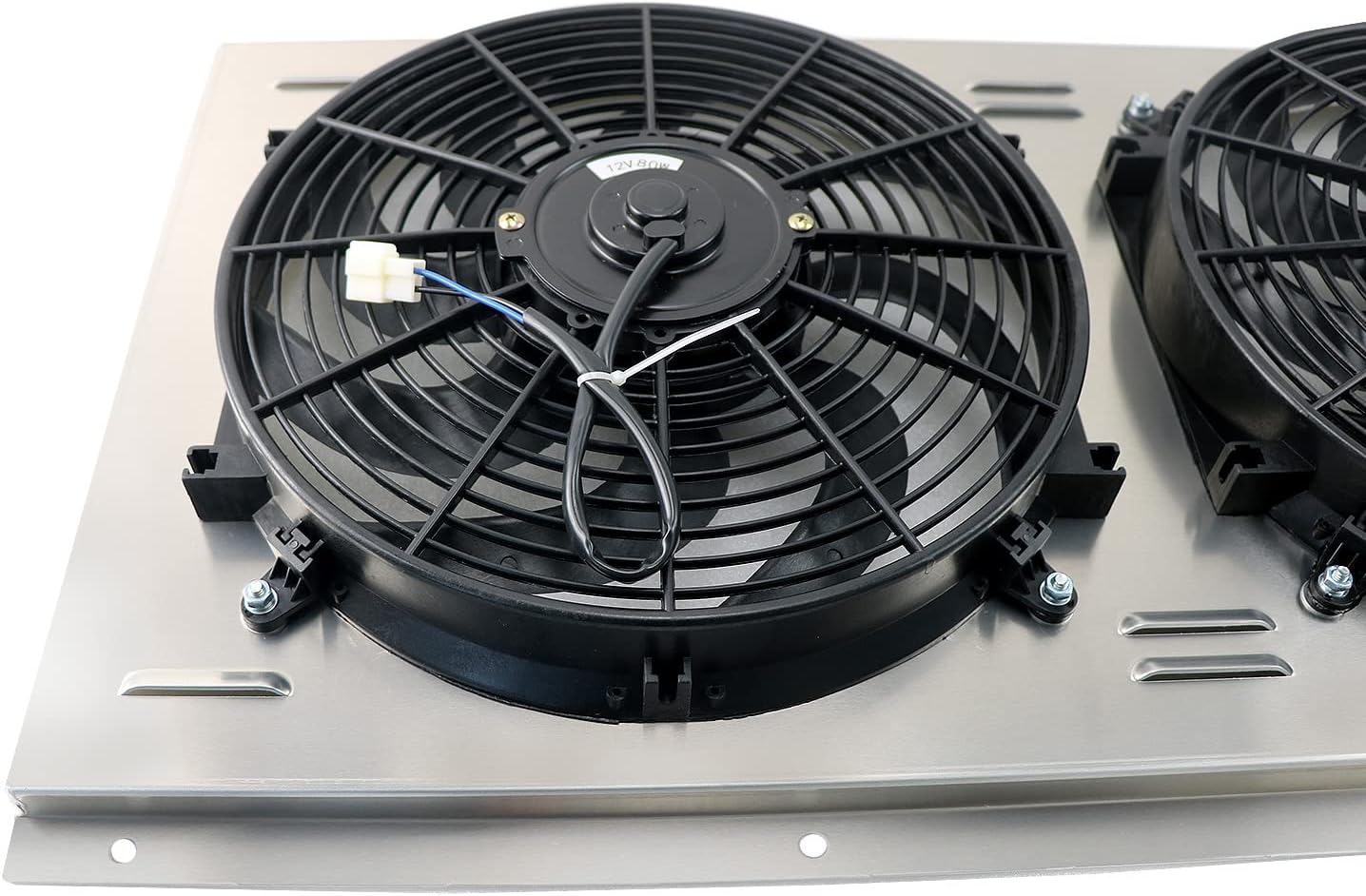

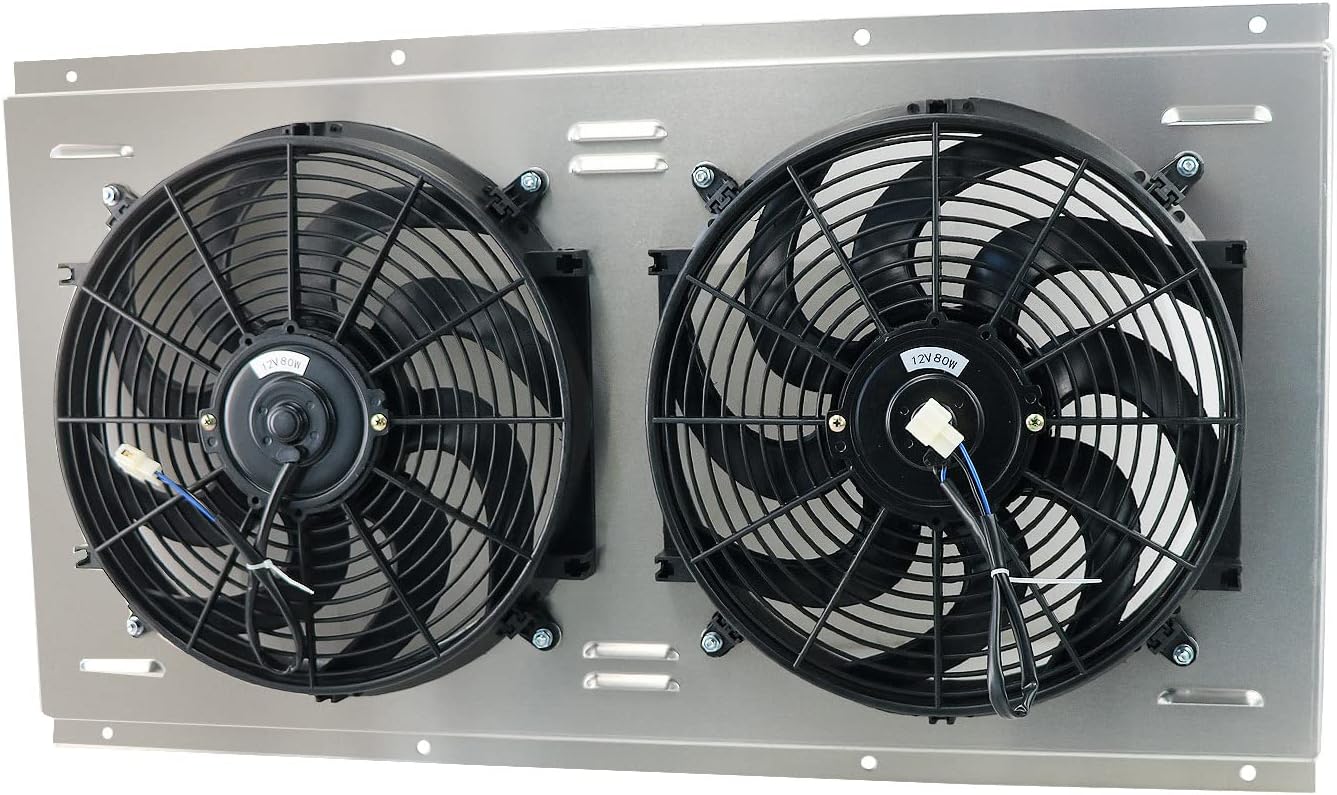

Aluminum Radiator Shroud Electric Fan Realy Kit for 1988-2000 Chevy GMC C/K 1500 2500 3500 5.7-7.4L V8
Product details
| Management number | 215412857 | Release Date | 2026/04/12 | List Price | $71.60 | Model Number | 215412857 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Shroud Fan Compatible with: Fits 1988-1999 Chevy C/K Truck 5.7L - 7.4L V8 Engines Fits 2000 Chevy C/K Truck 5.7L V8 Engines Fits 1992-1994 Chevy Suburban/Blazer 5.7L-7.4L V8 Engines Fits 1995-2000 Chevy Tahoe/1992-2000 GMC Yukon 5.7L V8 Engines Fits 1999-2000 Cadillac Escalade/Escalade EXT 5.7L V8 Engines ONLY FIT 34 INCH WIDE CORE,17 INCH HIGH CORE OE/OEM Part Number: SC1520, RAD1520, RA1520, RK1520, DPI1520, DPI1522, DPI1693, 1520, 1522, 1693 Superseded Part Number: SBR1693, YTC1693, KKS1693, SBR1522, KKS1522, TYC1522 Interchange Part Number: AE1520, EC1520, KKS1520, SBR1520, SPTCU1520, TYC1520 FAN Specification: Maximum Fan CFM: 1730 cfm Fan Diameter (in): 14.050 Thickness (in): 2.500 Number of Blades: 8 S-Type blades Maximum Fan RPM: 2,250 rpm Blade Material: Plastic Amp Draw: 12.70 amps Includes the Mounting Tabs for an Easy Zip Tie Installation Thermostat Kit: Universal fit for any automotive vehicle and electric fan Activates by grounding electric fans at preset temperature 180'F turn-on temperature, 165'F turn-off temperature 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included Probe typically threads into radiator, water outlet or manifold Thermostat Relay Kit Instructions: RED + connect directly to battery WHITE wire to ignition switch power source BLACK goes to thermos switch BLUE wire goes to the Fans This set up will run Fans & pull air in through radiator
- Aluminum Shroud Fan Overall Size(inch): 34 x 17 1/4 / Fan Diameter (inch): 14 / Thickness (inch): 2.5
- Shroud Electric Fans Combo Compatible with 1988-2000 Chevy GMC Cadillac Escalade C2500 C3500 K2500 K3500 C1500 K1500 Tahoe Yukon Blazer R3500 R2500 R20 R30 5.7L 7.4L 5.0L V8 4.3L V6 4.8L L6 Engines
- Aluminum alloy-shroud design with durable, TIG-welded construction, High Performance Racing Design, Improves Cooling by 30%+ Temp
- Please note that this listing only includes Aluminum Shroud + 2pcs 14inch Electric Fan, NOT includes the Radiator!
- Pls use AmazonConfirmedFit to check whether this shroud/fan compatible with your vehicle radiator
| UPC | 731036921747 |
|---|---|
| Voltage | 12 Volts |
| Wattage | 90 watts |
| Brand Name | KUUHLERSAT |
| Unit Count | 1.0 Count |
| Manufacturer | KUUHLERSAT |
| Material Type | Aluminum |
| Cooling Method | forced-air convection |
| Item Type Name | Aluminum Shroud Electric Fan |
| Air Flow Capacity | 1730 Cubic Feet Per Minute |
| Compatible Devices | Radiator |
| Included Components | 1 X AA5052 Aluminum Shroud, 2 X 14inch Fans (Includes mounting kits) |
| Power Connector Type | 3-pin or 4-pin |
| Warranty Description | 12 Months Warranty |
| Maximum Rotational Speed | 2500 RPM |
