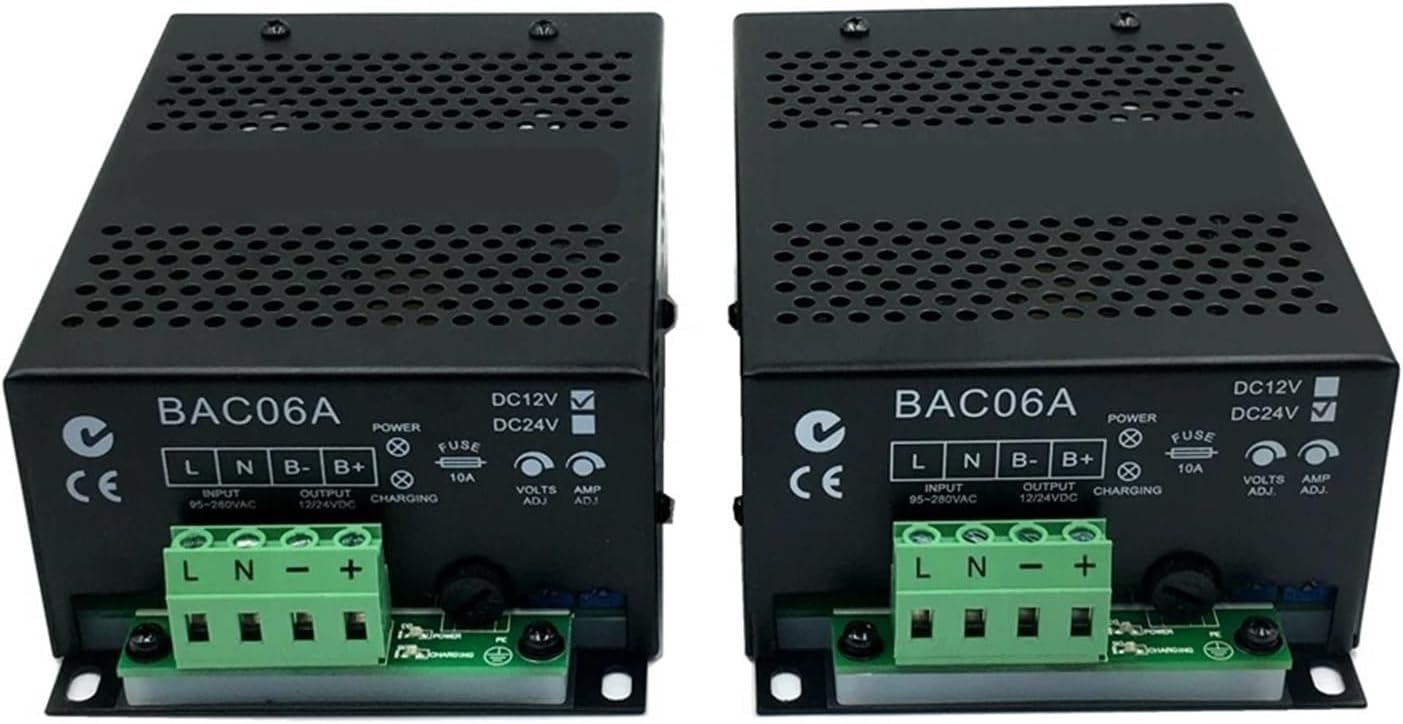

BAC06A Battery Charger 6A 12V 24V Auto Floating Charger for Diesel Generator(12V)

Battery ChargersBAC06A Battery Charger 6A 12V 24V Auto Floating charger for Diesel Generator1,OVERVIEWBAC06A switching battery charger adopts the latest switch power components, which is designed forcharging lead-acid starting battery according to its property. The charger is suitable for lead-acid batteryfloat charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24Vcharger is 3A.2,PERFORMANCE AND CHARACTERISTICSCharacteristics are as below:- Designed in switching power structure, wide range of AC voltage input, small volume, light weight andhigh efficiency;- Two-stage charging method (constant current firstly and then constant voltage), fully consideringcharging property of the lead-acid battery, can avoid overcharging and extend the battery life to thefullest;- With short circuit and reverse connection protection;- Charging voltage and current can be adjusted via potentiometer on site;- LED display: Power indication and charging indication;- Horizontal type for installation of BAC06A, easy to install;3,SPECIFICATIONBattery Voltage:12V/24VMax. Charge Current:6A/3ACharge Voltage Range:(13~14.5)V/(26~29)VCharge Current Range:(3~7)A/(1.5~3.5)AAC Voltage:(95~280)VACAC Frequency:50 Hz/60HzPower Consumption:120W/115WNo-Load Power Consumption:Less than 3WEfficiency:More than 80%Working Temperature:(-40~60)°CStorage Temperature:(-40~85)°CWeight:0.65kgCase Dimensions:143 mm×92 mm×55mm==========Model Number : BAC06AMax Ampere for 12V : 6AMax Ampere for 24V : 3A
