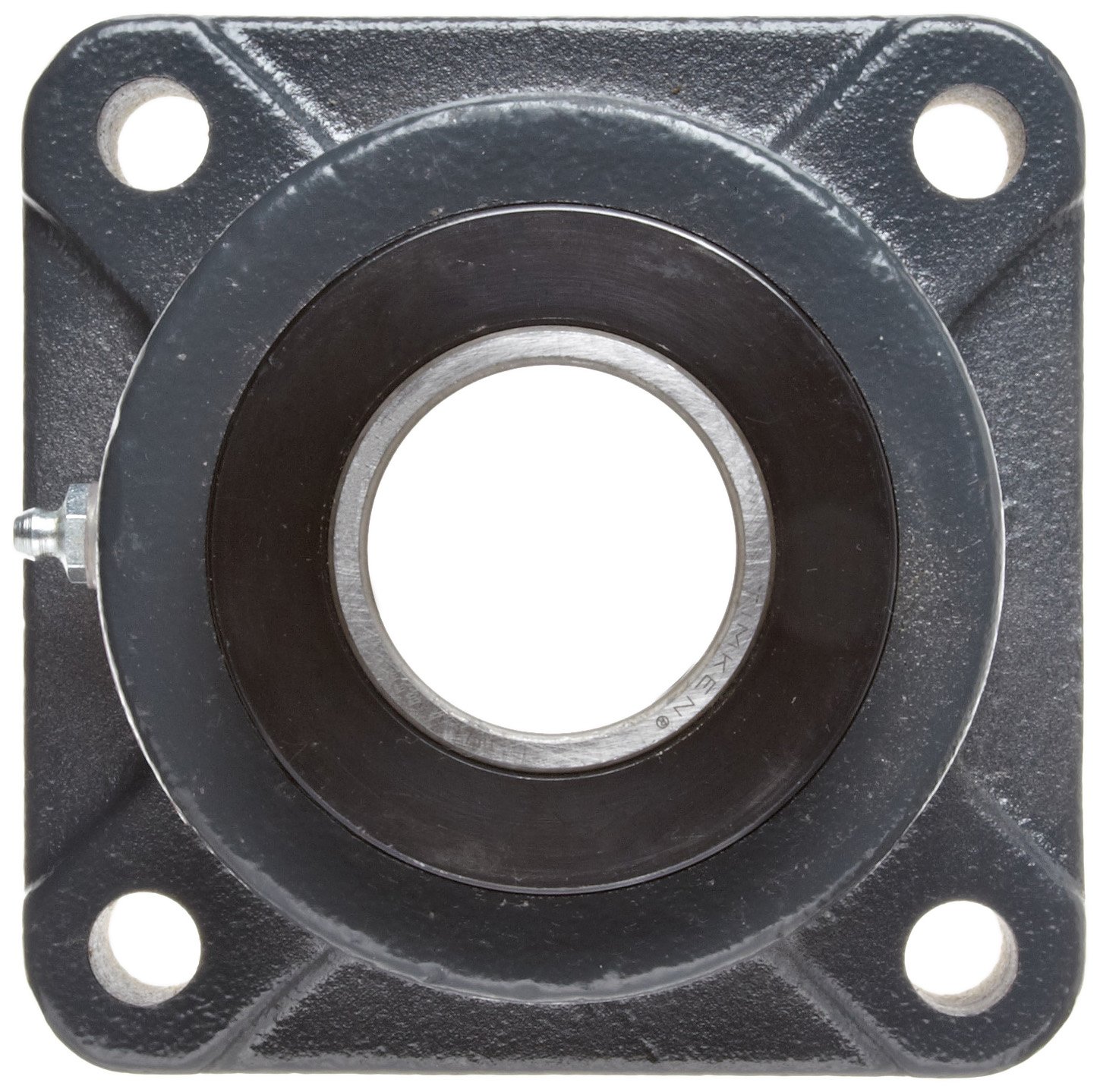

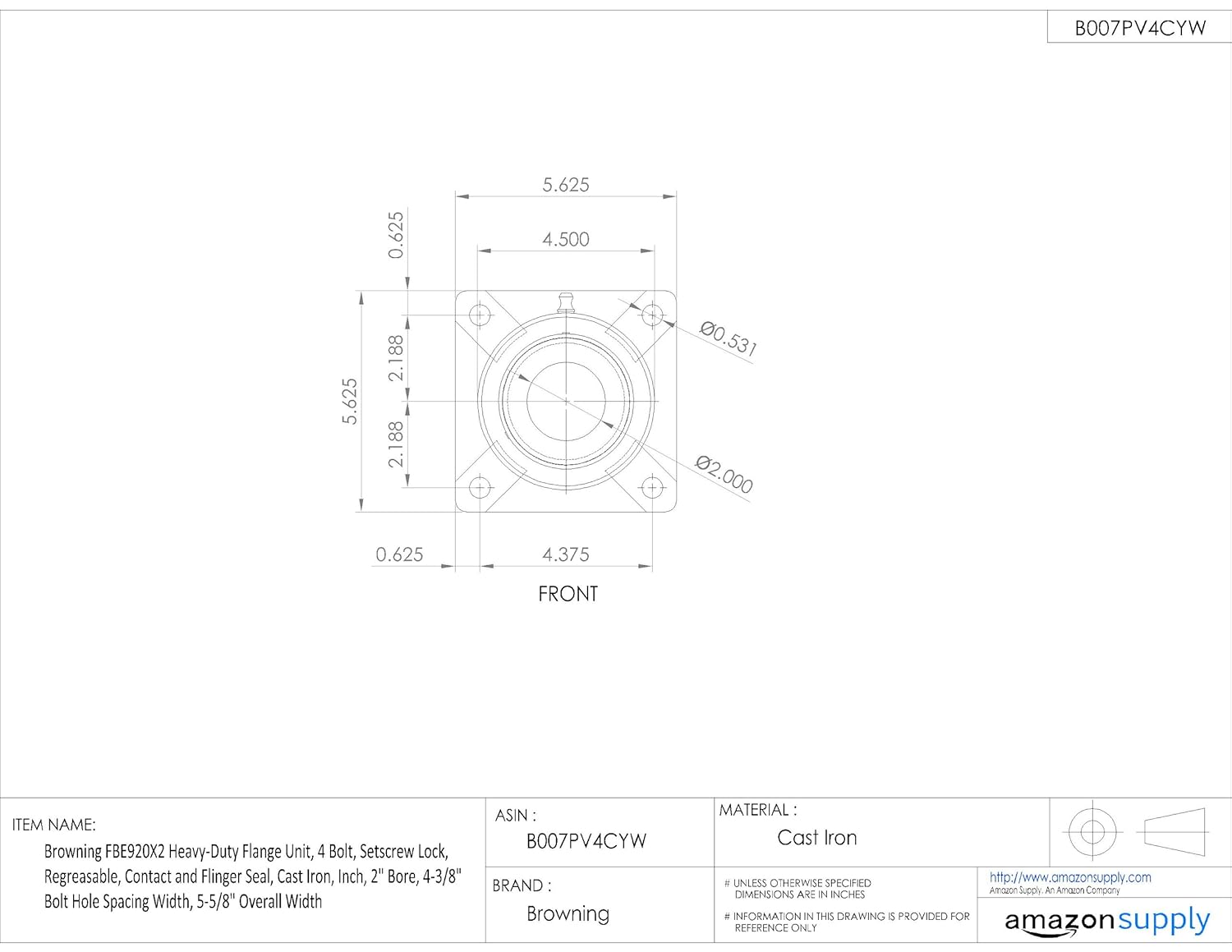

Browning FBE920X2 Heavy-Duty Flange Unit, 4 Bolt, Set Screw Lock, Regreasable, Contact and Flinger Seal, Cast Iron, Inch, 2" Bore, 4-3/8" Bolt Hole Spacing Width, 5-5/8" Overall Width

This Browning FBE920 series flange unit has a cast iron housing with four bolt holes, contact seals, and double set screw locking collars. This non-expansion-type bearing unit is designed for mounting onto bearing surfaces perpendicular to the shaft axis. The ASTM International A48 grade 30 gray cast iron housing is rigid and dampens vibration, and its four bolt holes provide mounting stability. The double-row, spherical roller bearing insert is rated "heavy duty" for applications with heavy combined radial and thrust loads. The bearing is self-aligning and accommodates misalignments between the shaft and the housing. Contact seals with flingers on both sides of the bearing protect against contaminants and retain lubricant applied at manufacture. The bearing has collars that extend from each end of the inner ring and lock onto the shaft with two set screws spaced 120 degrees apart for a three-point contact hold. This bearing unit has a grease fitting on the housing outer surface for reapplying lubricant. Flanged bearing units are suitable for use in industrial and commercial applications including conveyors, fans and blowers, construction machinery, and processing equipment.Mounted bearings combine a bearing mounted inside a housing unit. The bearing housing replaces the need for a casting or weldment to position the bearing securely for reliable operation, and its design determines the type of insert bearing. Insert bearings use rolling elements (ball, cylindrical, spherical, barrel, needle, spindled, or tapered) to maintain the separation between moving parts to reduce rotational friction, and to support radial and axial loads. Available in a variety of materials and mounting configurations, mounted bearings can be one- or two-piece, they can have an extended inner ring and locking device, and they can have seals and end caps that retain lubrication and protect the working parts of the bearing from environmental debris. Mounted bearings support shafts in a variety of mounting configurations (flange block, hanger, pillow block, and take-up block), and are used in a range of applications from light duty shaft guidance on conveyors to road building equipment and crushers.Browning Bearings manufactures V-belt drives, gearing, bearings, and other power transmission components. The company, founded in 1886, is headquartered in Maysville, KY.

• Four-bolt flange-style housing for a ready-to-mount installation where surface and guided shaft are perpendicular
• Heavy-duty, double-row spherical roller bearing insert accommodates misalignments between the shaft and the housing
• Cast iron housing and steel bearing unit for carrying shafts with radial or radial and thrust loads
• Non-expansion-type bearing with double set screw locking collars for secure attachment to guided shaft
• Contact seal with flinger on both sides of the bearing keep lubricant in and contaminants out
