Brushless Electric Motor 72V 1000W and Speed Controller with Speedometer+Foot Brake Pedal for Electric Dirt Bike Go Kart Golf Cart ATV Quad Buggy E-Bike Drift Trike Tricycle Scooter
Product details
| Management number | 216418516 | Release Date | 2026/04/19 | List Price | $164.00 | Model Number | 216418516 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

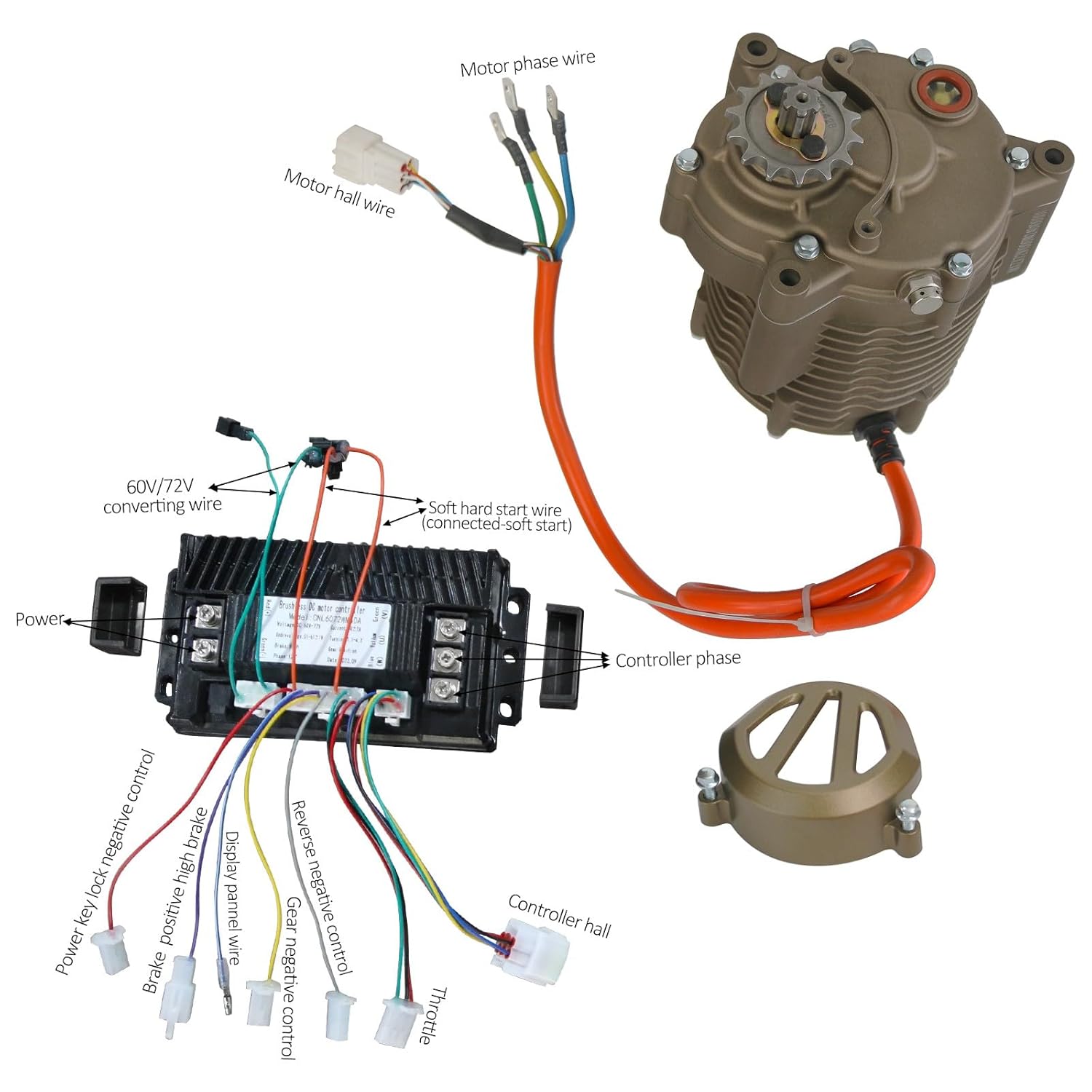

Brand New 72V 1000W Brushless DC Motor with Gear box and Speed ControllerRated voltage: 72VUnder voltage: 62VRated current: 38-40AType: Sine WaveSine wave Controller: 24 tubes, 38-40ASpeed: 4200-4500rpmTerminal torque: 120N.MGear Sprocket: 428-15TGear Ratio: 2.85Max load: 2000lbsTwo Drive Modes: Economic mode + Sports modeCondition: High speed in default with high brakeTop speed: 50-60km/hFits for electric bikes, scooters, electric dirt pit bikes, ATV quad, buggies, go karts, golf carts, E-Bikes, drift trikes,tricycles, motorcycle, razors, mini bikeskit includes: 72v 1000w motorControllerLCD display428-41T-48mm Sprocket428-140L Chainforward/reverse switch3-speed switchwiring harnessterminal boardspower keyfoot brake pedalcircuit breaker3 in 1 switch
- 72V 1000W Brushless DC Motor, complete with Gearbox and Speed Controller. Specifically crafted for diverse electric rides like bikes, scooters, ATVs, go-karts, and golf carts
- Boasting a Sine Wave design, this motor reaches remarkable speeds of 4200-4500rpm, with Economic and Sports modes
- DC Brushless Motor: Type: Sine Wave | Speed: 4200-4500rpm | Rated voltage: 72V | Rated current: 38-40A | Under voltage: 62V | Terminal torque 120N.M | Top speed:50-60km/h
- Sine Wave Controller: 18 tubes, 40±2A current, 60-72V voltage, 1.1-4.3 turning, 120° phase
- Kit includes: motor, controller, LCD display, sprocket, chain, forward/reverse switch, 3-speed switch, wiring harness, terminal boards, power key, twist throttle, and circuit breaker, 3 in 1 switch, brake switch
- The Multifunction Display Meter only displays kilometers per hour and does not support miles per hour
| Model | td057-2 |
|---|---|
| Brand Name | WPHMOTO |
| Horsepower | 1000 Watts |
| Model Name | motor and controller |
| Manufacturer | WPHMOTO |
| Material Type | Metal |
| Included Components | circuit breaker, 3 in 1 switch, brake switch |
| Warranty Description | 90 days |
