BS-01 Suction Cup Mount Ball Head for DSLR Camera, Phone Holder,Gopro for Car,Load 22lbs.(10KG)

BS-01 is one-piece pump vacuum suction mount with ballhead, consists of a vacuum air pump cup mount at the base and a ballhead on the top; compared with its competitors, the BS-01 is more multi-functional, safer and easier to use; Cup mount diameter:4.6in.(117mm) Height:4in.(102mm) Ball Diameter:28mm Weight:14.7oz.(418g) Ballhead Load Capacity:22lb.(10KG) Suction force:165lb.(75KG)

• The mounting base of the air - pump suction cup works on the principle of vacuum adsorption and can adhere to various smooth, non - porous surfaces, whether they are flat or curved, like car bodies, ship hulls, glass, plastics, etc.
• When the warning line of the air - pump button is exposed, press the air - pump button on the suction cup several times to extract the air from the suction cup. Stop when the warning line is no longer visible, which indicates that the standard suction force has been restored and it can be used with confidence. The operation is simpler and safer. Pull up the tongue of the rubber base to instantly release the vacuum and remove the head from the adsorption surface.

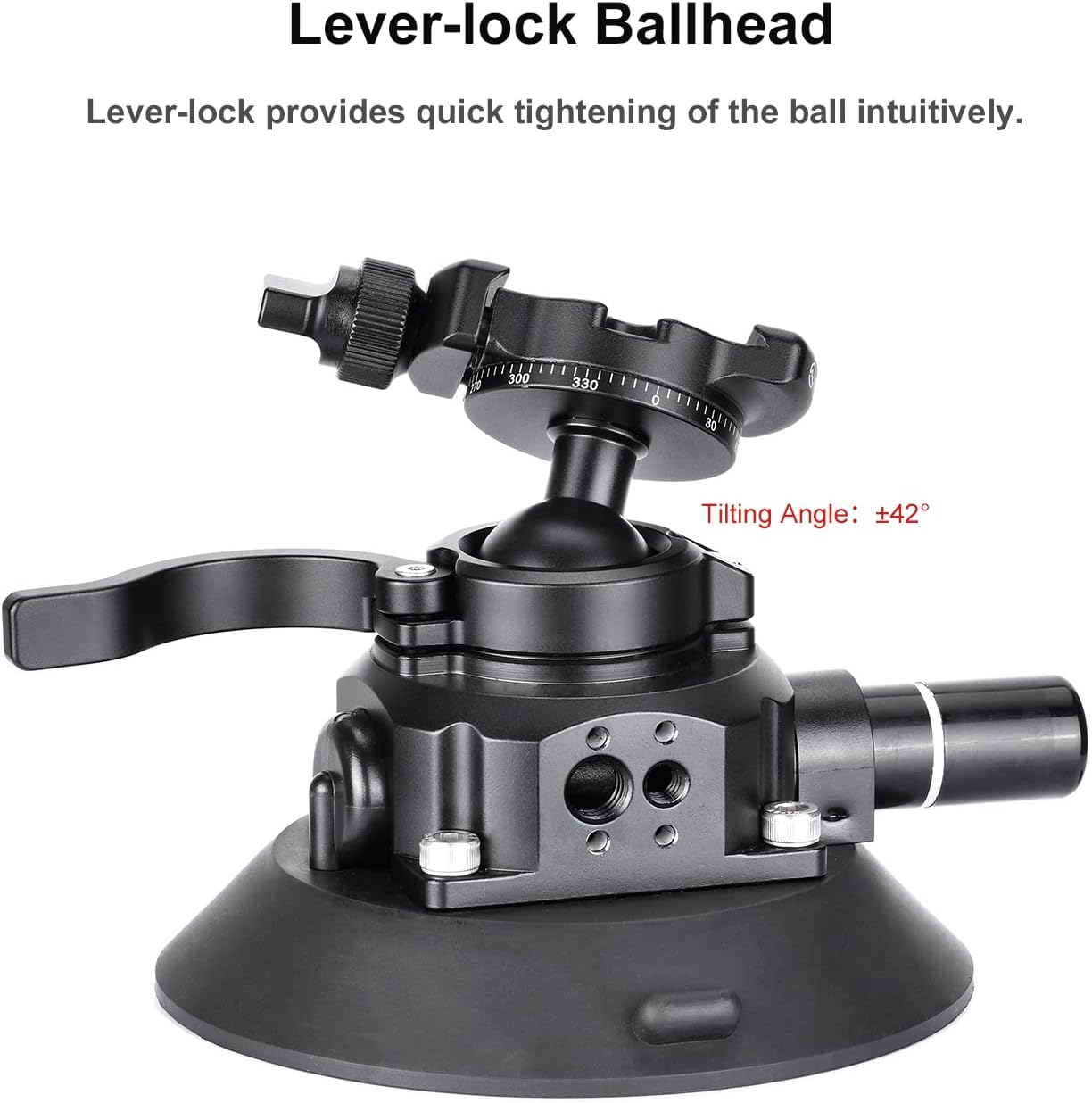

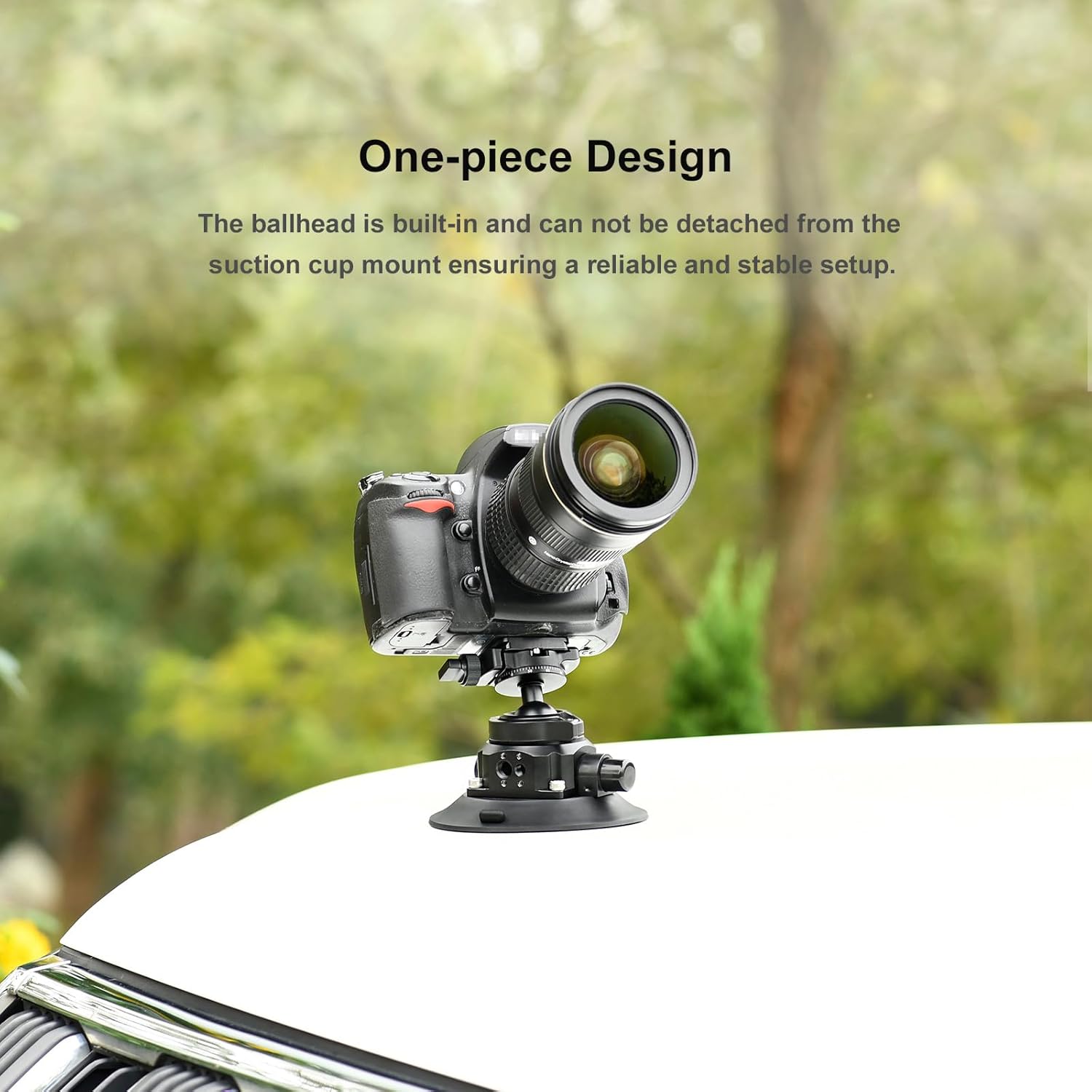

• The sphere is locked with a toggle - type mechanism, enabling quick locking with simple operation. The sphere has a diameter of 28mm and a load - bearing capacity of 10KG. The suction cup and the head are designed as an integrated, non - detachable unit, which is safe and reliable, and suitable for heavy - duty professional equipment such as SLR cameras and video cameras.

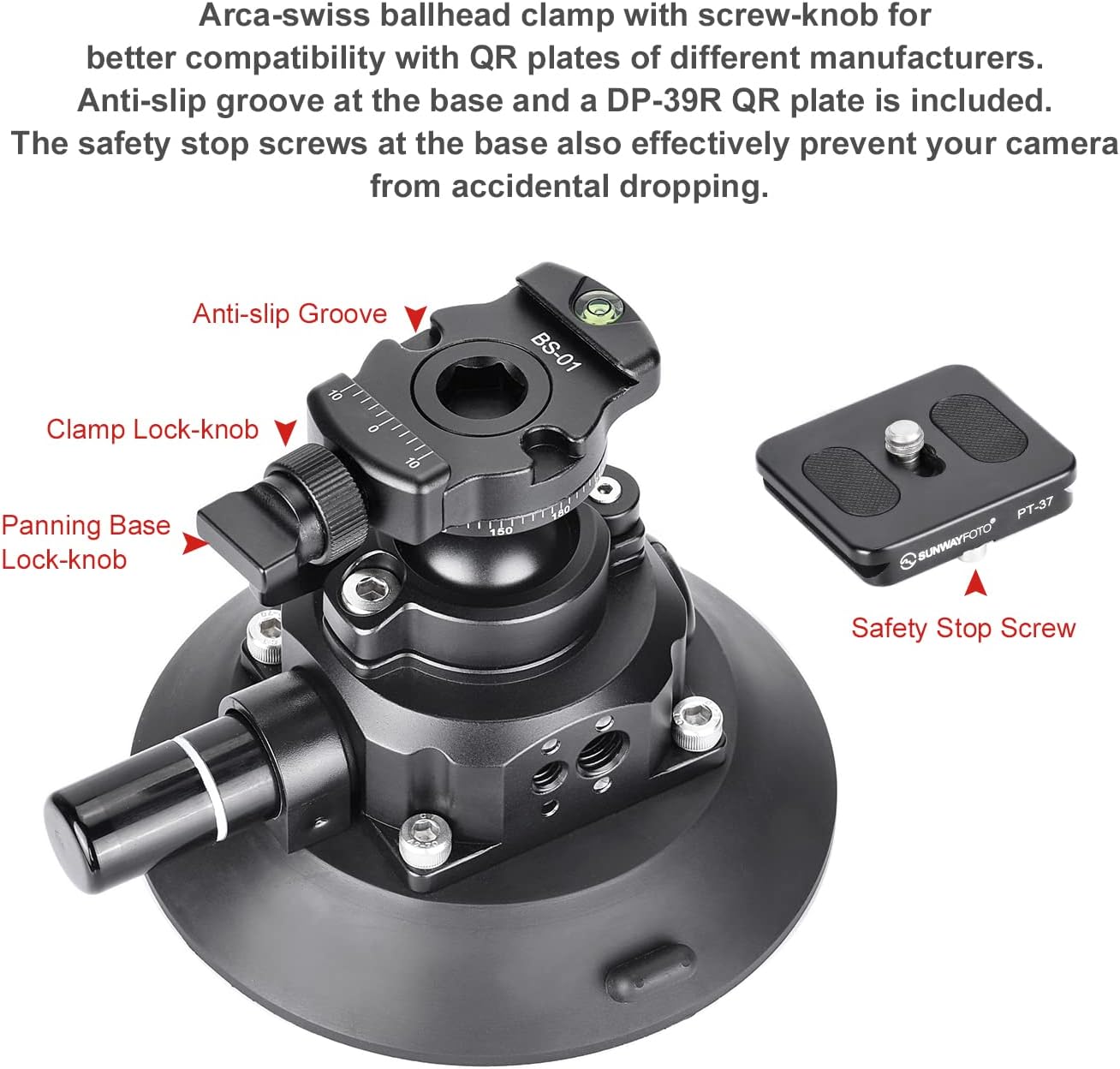

• The clamping of the head is an arca swiss standard clamping, locked by a knob - type mechanism. It has good tolerance for the dimensional tolerances of quick - release plates. The bottom surface has anti - skid grooves, and is equipped with a standard quick - release plate PT - 37 and anti - skid screws at the bottom to prevent the camera from accidentally slipping during use.
• The base has pre - reserved 3/8 - 16 and 1/4 - 20 screw holes, allowing the installation of other accessories to expand more functions, such as magic arms, mobile phones, GOPROs, DJI OSMOs, fill lights, flashlights, microphones, etc.
