CNC Carbide Inserts TNMG332 / TNMG160408-MD for Metal Lathe Cutting Steel, Semi-Finishing chipbreaker for Turning Cutter, 10 PCS.
$30.37
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by costaestofamentoscuritiba.com.br
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$30.37
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by costaestofamentoscuritiba.com.br
Free 30-day returns Details
Product details
| Management number | 211280882 | Release Date | 2026/04/04 | List Price | $12.15 | Model Number | 211280882 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Size: TNMG332, ΦIC: 9.525mm, Thickness(S): 4.76mm, Dimension(Φd)：3.81mm, Radius(R): 0.8mm,Nose Angle: 7°
- Chip breaker MD Suitable for semi-finishing machining of carbon steel and alloy steel, Suitable for processing workpiece with various dimensions and typles.
- Improved substrate functions with high stability and excellent resistance to breakage, the materials has improved the tool life and better resistance to plastic deformation by applying composite coating technique with upgraded CVD coating(MTCVD) and thick film-a-AL2O3.
- The inserts can be used not only for steel, but for parts of cast iron and exotic alloy, thus meeting the most part of machining requirments. Maintaining tool life and excellent surface when machining at high speed and high feed.

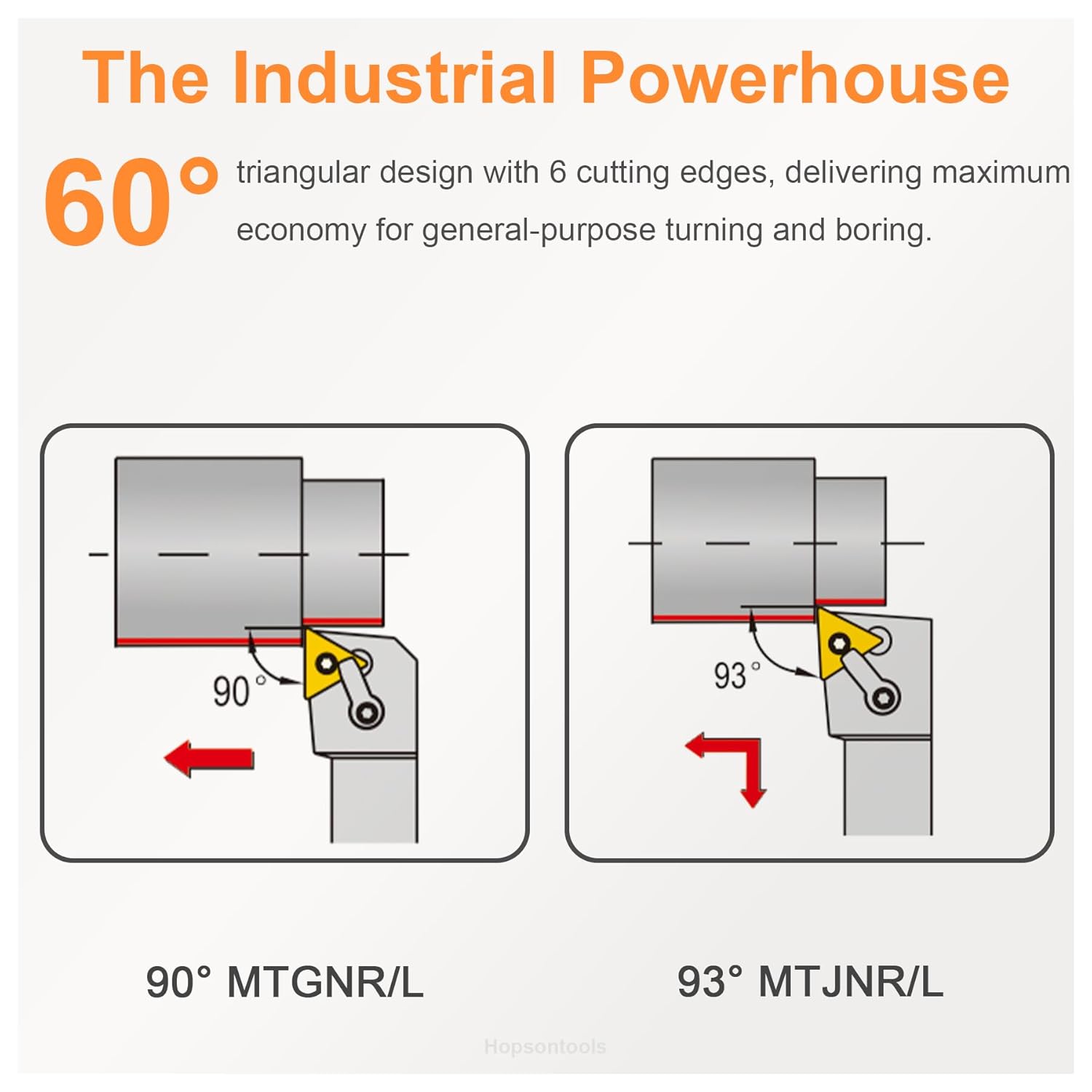

- CDBP developed a series of indexable CNC turning inserts for steel with specially designed chipbreaker and CVD coating, which is suitable for varius applications including external turning, boring and end face turning as well as chamfering.
| UPC | 761594654863 |
|---|---|
| Shape | Triangular |
| Cut Type | Semi-Finishing |
| Size Name | TNMG160408-MD |
| Brand Name | CDBP |
| Item Weight | 0.08 Kilograms |
| End Cut Type | Semi-finishing |
| Finish Types | TiAlN |
| Manufacturer | CDBP |
| Corner Radius | 0.8 Millimeters |
| Material Type | Carbide |
| Cutting Length | 4.76 Millimeters |
| Tolerance Held | Precision |
| Cutting Diameter | 9.53 Millimeters |
| Number of Flutes | 10 |
| Number of Cutting Edges | 10 |
