Flight Stack 30.5x30.5mm F405 V2 AM32 8S 60A ESC Compatible With FPV Racing Drone Quadcopter

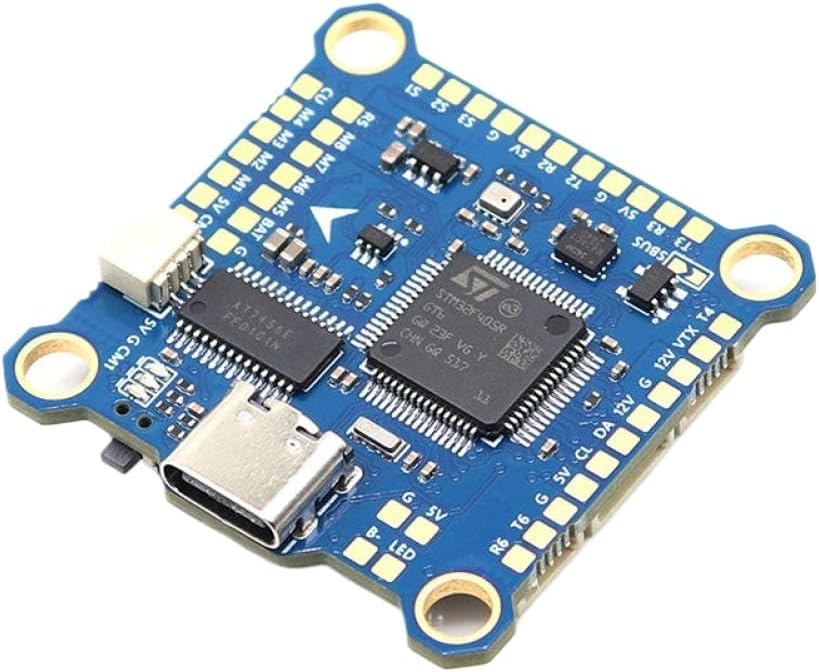

30.5x30.5mm F405 Flight Stack 8S F405 V2 Flight Control AM32 8S 60A ESC For FPV Racing Drone Quadcopter Master chip: STM32F405RGT6 Gyroscope: ICM42688 Barometer: SPL06 OSD chip: AT7456E Black box: 16M : Not Supported RSSI: Support, marked as RSSI Support flight control firmware: Betaflight/INAV/Ardupilot/Vista VTX/Camera: Support/4pin/3Pin USB: Type-C BEC: 5V 3A / 12V 3A input: 3-8S Lipo Installation hole position: 30.5x30.5mm/M4 Size: 37mm x 37mm x 8mm Weight: Bare board 8g 60A AM32 4IN1 ESC Specifications: MCU: AT32F421K8U7 Program: AM32_2.18 MOS: ONSEMI_NTMFS5C430NLT1G Continuous current: 60A x 4 Transient current: 70A-10S TVS protection diode: included Electrolytic capacitor: 1000uF Low ESR Capacitor Motor protocol: Dshot(All), PWM, Oneshot, Multishot, etc input: 3-8S Lipo Ameter: support Power Output: VBAT Installation hole position: 30.5x30.5mm/M4 Size: 45mm x 43mm x 7mm Weight: Bare board 16g

• Model F405 V2 Flight Stack designed for performance FPV racing drones and quadcopters
• Integrated 30.5x30.5mm form factor ensures compatibility with a wide range of 5-inch and smaller drone frames
• Equipped with AM32 flight controller for responsive handling and stable flight characteristics in dynamic maneuvers
• Features a robust 60A 8S ESC capable of supporting voltage LiPo batteries up to 8S for extended power efficiency
• Ideal for advanced drone pilots seeking control and in freestyle, racing, and aerial acrobatics applications
