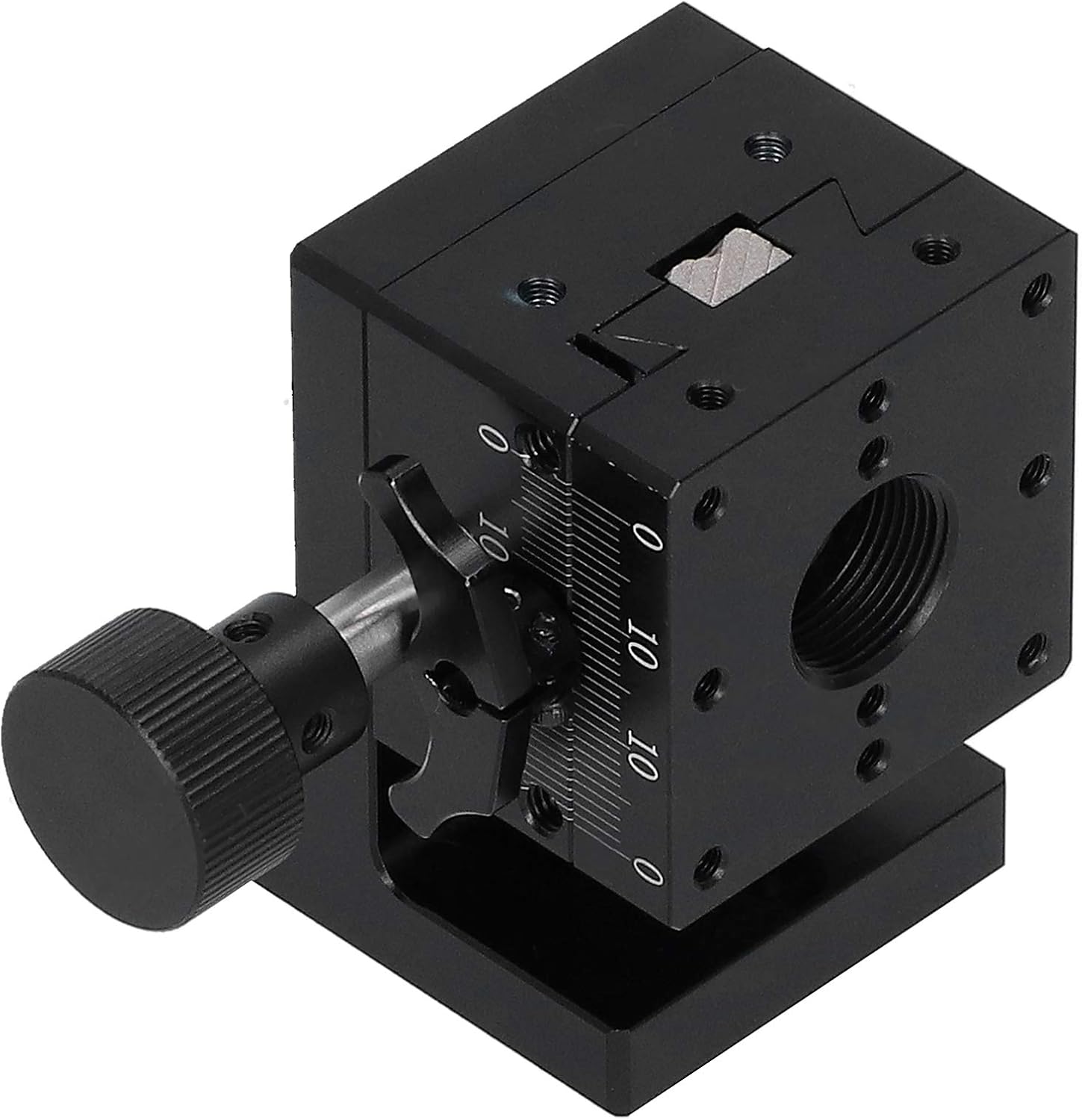

HFL - A40 40×40 mm Gear Lifting Stage, Aluminum Alloy Z Axis Dovetail Manual Trimming Platform, Scratch Resistant Linear Translation Stage

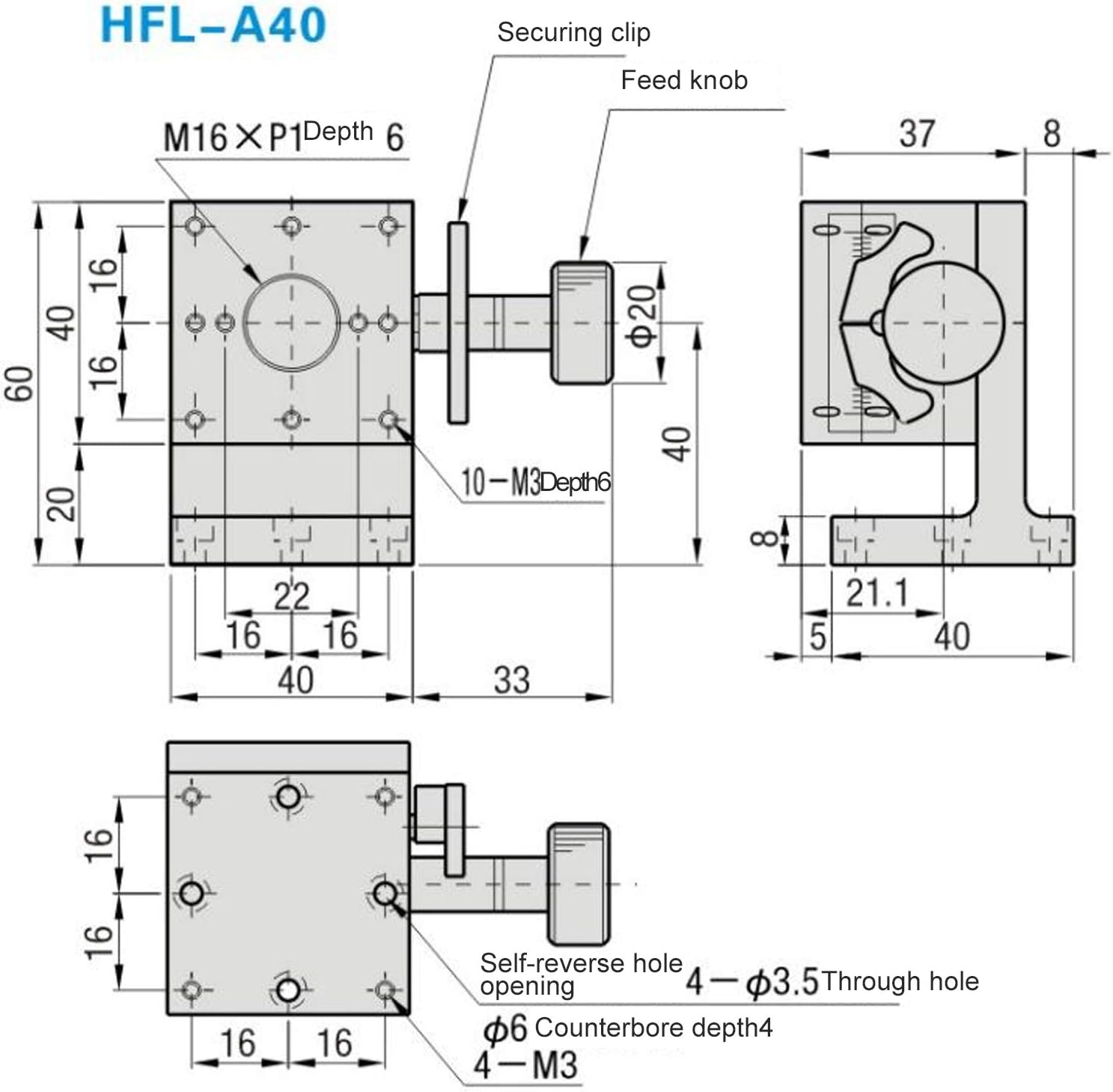

Item Type: Z Axis Dovetail Manual Trimming PlatformModel: HFL-A40Platform Size: Approx. 40 x 40mm / 1.6 x 1.6inBody Material: Aluminum AlloySliding Track: Gear guideRail Type: Dovetail grooves typeNumber of Countertop Threaded Holes: 10Threaded Hole Diameter: Approx. 4mm / 0.16inThreaded Hole Depth: Approx. 6mm / 0.2inWithstand Load: 29.4N (3Kgf)Up and Down Movement Stroke: ± Approx. 10mm / 0.4inMinimum Scale: 0.01mmParallelism: 20μmMoving Parallelism: 0.01mm/13mmPackage List：1 x Z Axis Dovetail Manual Trimming Platform

• Material Durability: Crafted from aluminium alloy, this product is both light in weight; The alloy material is not only resistant to friction, but also offers protect against scratches and drops, making it a dependable choice for various ambient

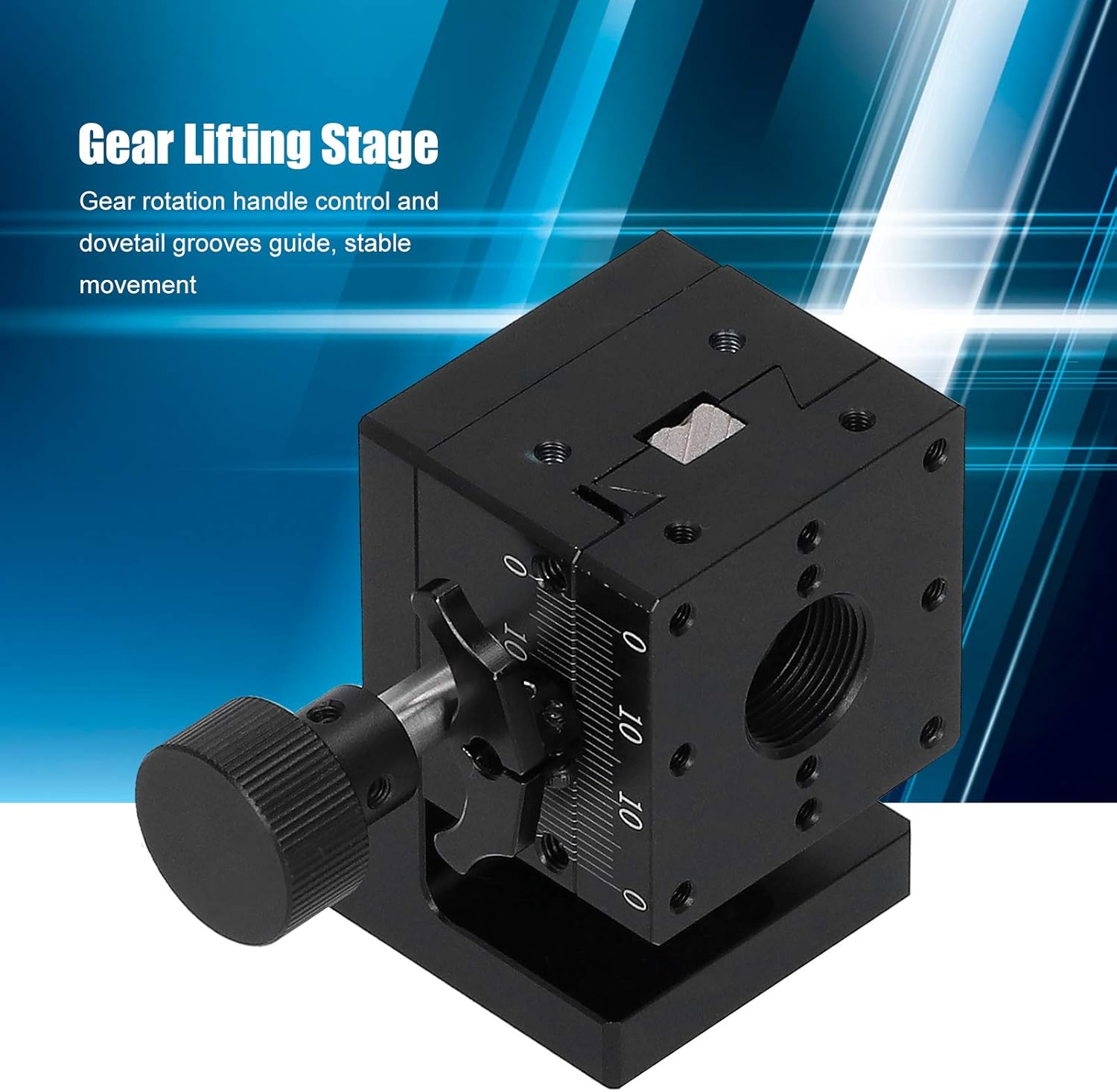

• Smooth and Stable Operate: Equipped with a gear rotating handle control and dovetail grooves, this product ensures smooth, stable movement; The guide rail type and load resist design contribute to dependable operate, even under pressure
• Safety and Portability: The inclusion of an R angle safety protect feature adds an extra layer of security, ensuring safe handling at all times; Its compact size allows for easy transportation and storage, making it an ideal tool for those on the go
• Wide Application: This product is designed to be compatible with a variety of industries; Whether you’re working with testing machines, microscopes, or other technical instruments, it provides the versatility needed to tackle a range of tasks
• Compact and Efficient: Its small size ensures that this product is easy to carry and store without sacrificing performance; Despite its compact nature, it maintains high functionality, allowing you to complete tasks with ease
