High Output 200 Amp Alternator for Chevy Olds Holden BBC SBC Hotrod Performance 1 One Wire Custom Made 10SI 12SI 200A

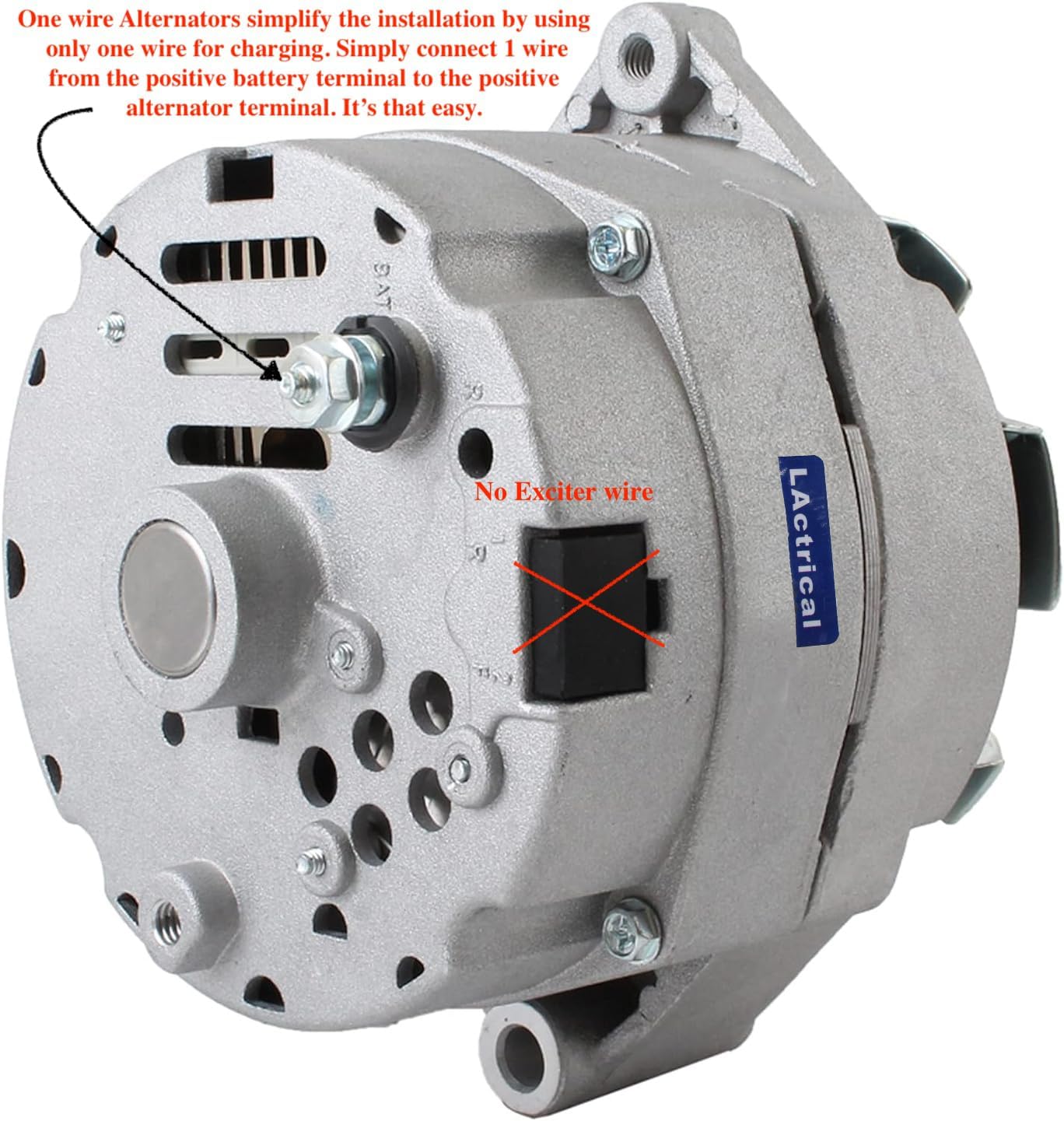

100% NEW LActrical HIGH OUTPUT ALTERNATOR FOR CHEVROLET 200AMP IR (Internal Regulator) IF (Internal Fan) Plug Position 3 o'clock Pulley Type: 1-Groove Pulley, 8-Mar belt, 2.75 OD Features: Manufactured with Premium quality components Custom, Hi-Output 200Amp Stator Rectifier features 6x70Amp diodes Regulator features High amp MOSFET field transistor Premium, Hi-temperature Bearings Hi-temperature class-H windings This is a High output one wire hookup Alternator with internal self exciting voltage regulator(No external Regulator required) simplifying your wiring. This is a Direct bolt-in replacement similar to the original unit you are replacing. Wiring is simple because of the self-exciting regulator that uses only a 1-wire hookup.You will need only your main charging wire connected to the battery. Output at idle is 85 Amps ,Full output is achieved when engine is at over 1200 rpm Important Note:For safety and better result,We recommend installing a fused 4 gauge main charging wire to allow maximum current flow to your battery.

• Premium Quality Replacament High Output Alternator
• Aftermarket Part (Not Rebuilt/Refurbished/Repurposed)
• 200Amp , 1 Wire System
• Replaces:10SI 12SI Alternators
• Important Note:For safety and better result,We recommend installing a fused 4 gauge main charging wire to allow maximum current flow to your battery.
