MFD350B Portable Digital Ultrasonic Flaw Detector MFD-350B Measuring Range 0~6000mm

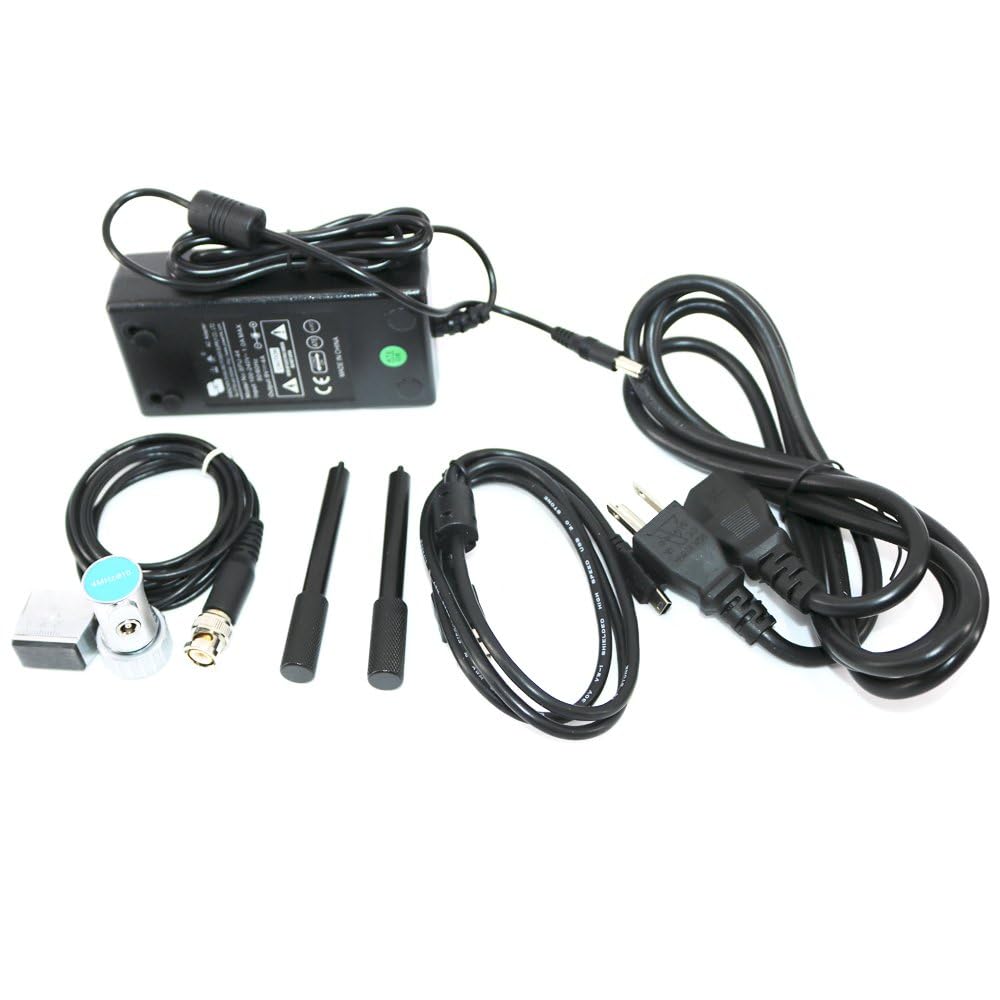

SpecificationRange: 0 to 6000 mm, at steel velocityMaterial Velocity: 300 to 15000m/sDisplay Delay: -20 to 3400 µsProbe Delay/Zero Offset : 0 to 99.99µsSensitivity Leavings: >60dB (flat-bottomed deep hole 200mm2)Resolution : >40dB (5P14)Noise Level: ≤ 8%Test Modes: Pulse echo, dual element and thru-transmissionPulse Repetition Frequency ranges from 10 Hz to 1000 HzPulse Energy: Low, Medium and High spike pulse.Damping: 100, 200, 400 ohmsBandwidth (amplifier bandpass ): 0.2 to 15 MHzGate Monitors: Two independent gates controllable over entire sweep rangeRectification: Positive halfwave, negative halfwave, fullwave, RFSystem Linear Deviation:Horizontal: +/-0.2% FSW, Vertical: 0.25% FSH, Amplifier Accuracy +/-1 dB.Reject (suppression): 0 to 80% full screen heightUnits: Inch or millimeterTransducer Connections: Power Requirements: AC Mains 100-240 VAC, 50-60 HzOverall Dimensions: 10.35×6.7×2.4 inRelative Humidity: (20 ~ 95)% RHPower Supply: DC 9VOperating Temperature: -10℃ to 50℃Storage Temperature: -30℃ to 50℃MFD350B Standard ConfigurationMain Body x 1Straight Beam Probe x 1Angle Probe x 1Machine-probe Cable (C9-C5) x 1Battery Module x 1Power Adapter (Charger) x 1Support Pillar x 1English Manual x 1Instrument Case x 1Data proceeding Software x 1（Sent digitally）USB communication Cable x 1

• Designed with high performance security-guarantee battery module, it's easy for disassembly and assembly. And it can charge independent with offline.
• With digital color TFT LCD display, it can choose the background color and wave color according to the environment. And the LCD brightness also can be set freely by yourself.
• MFD350B Ultrasonic Flaw Detector With English display, master-slave menu, shortcut key and digital swiftly knob, it's designed with leading technology and can be used very conveniently.
• With small size and light weight, the instrument can be hold by one hand. It's durable in use and lead industry trend.
• And the large capacity and high performance Lithium ion battery module make the instrument' continuously working time to above 8 hours.
