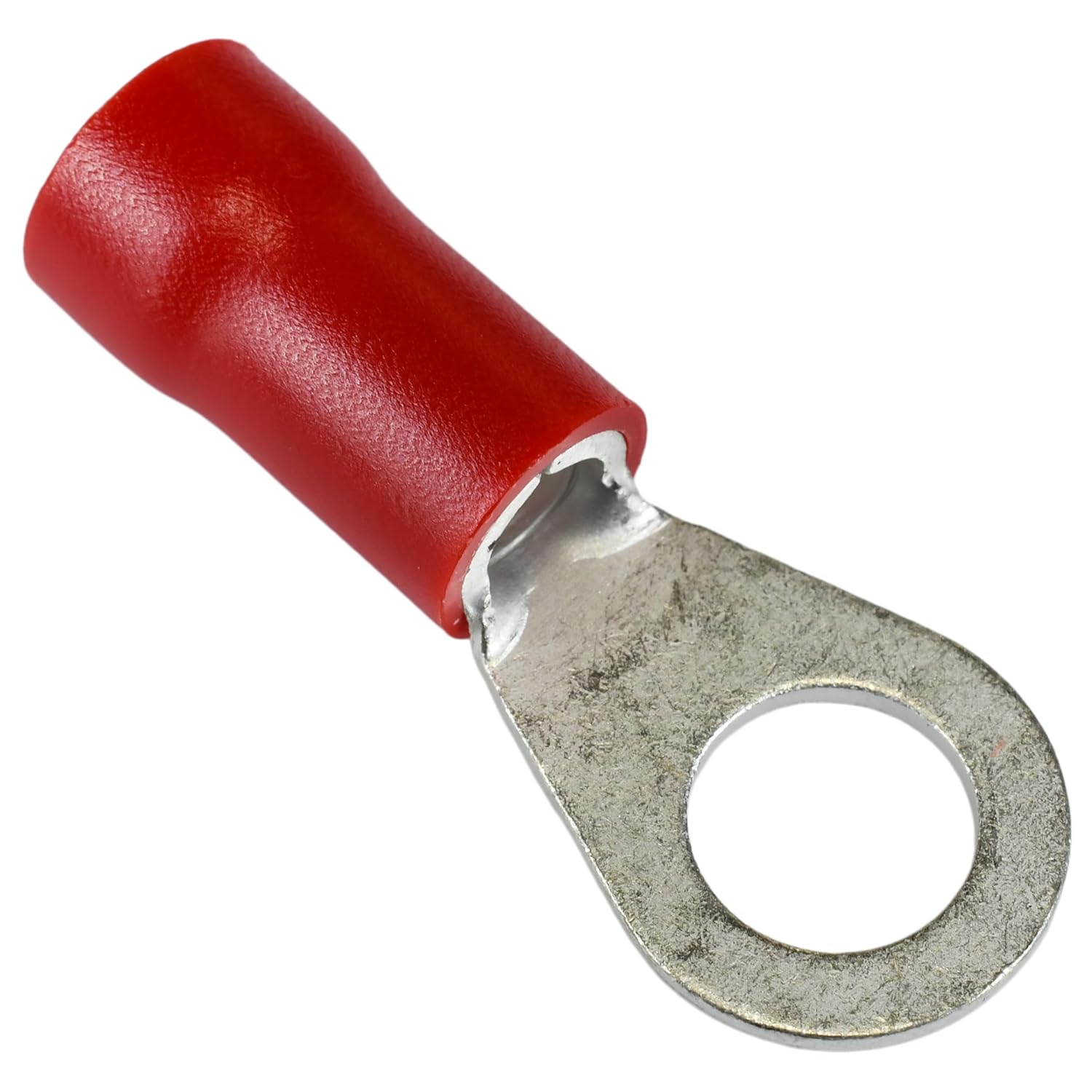

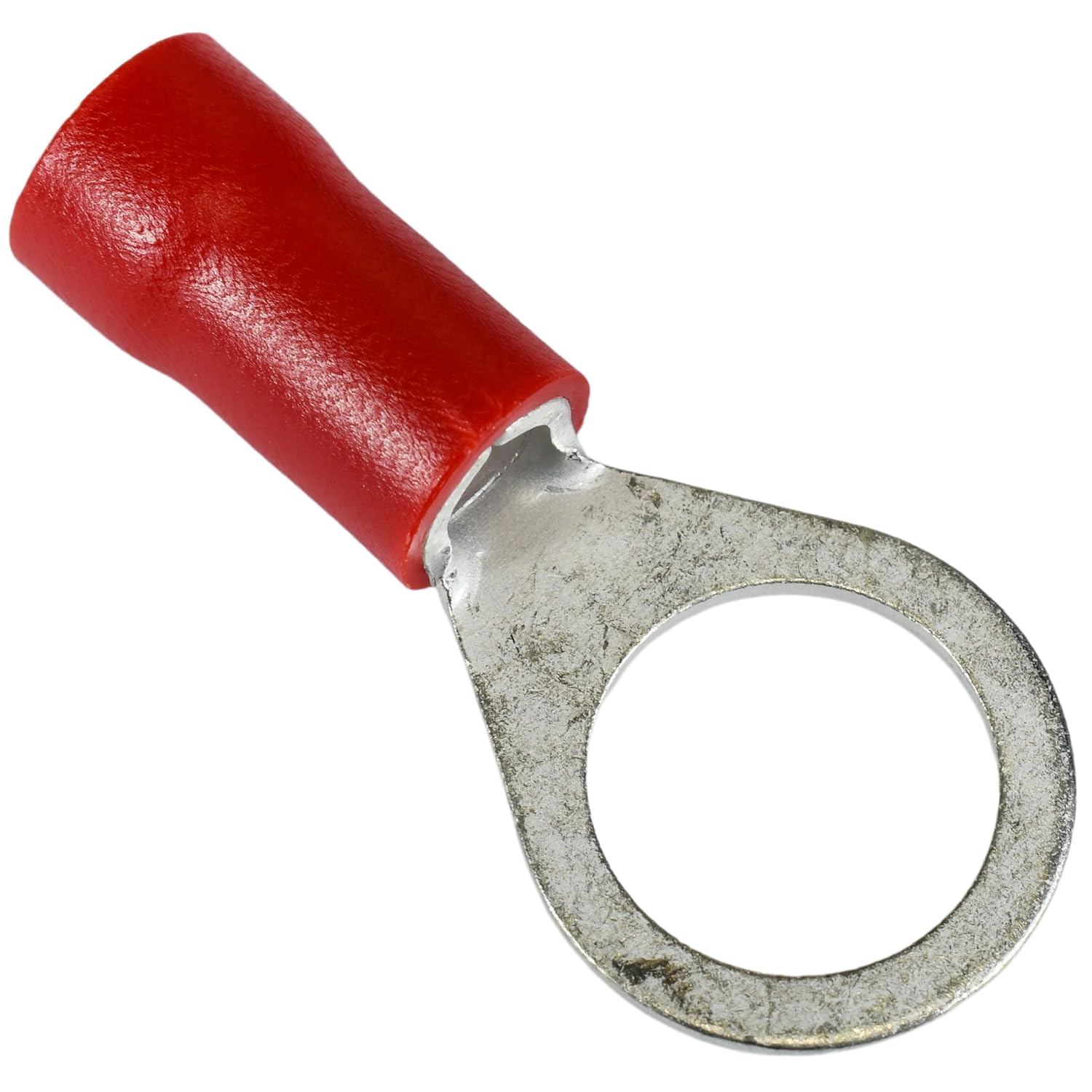

PAPUGA 500PCS 8 AWG (10 mm2) #8 / M4 Insulated Ring Lug Crimp Terminal, 600V 62A, UL cUL Power Lug for Inverter Solar & Marine Wiring, Solar & Inverter
Product details
| Management number | 215606800 | Release Date | 2026/04/12 | List Price | $46.40 | Model Number | 215606800 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
PAPUGA 8 AWG (10 mm2) UL-Rated Insulated Ring Lug Crimp TerminalPack Size: 500PCS | Bolt Size: #8 / M4Electrical Rating: 600V / 62A Max | Certification: UL & cUL Listed – File E357535Designed for secure, vibration-resistant connections in automotive, marine, industrial, and power-distribution systems. The closed-ring design maximizes contact area and helps prevent accidental disconnection.Material: Tin-Plated Copper for corrosion resistance and stable conductivity. Wire: For 8 AWG stranded copper wire only. Rated up to 62A at 600V when properly crimped.Insulation: Red PVC Vinyl (75°C) helps reduce abrasion and short-circuit risk. Insulation may be removed if required; use a bare-terminal crimper if removed.Crimping Tip: Use a crimper designed for insulated terminals and perform a pull test after crimping. Always disconnect power before installation.Common Applications: Battery/inverter cables, grounding and bonding, generators, automotive wiring, marine electrical, machinery, automation equipment, amplifiers, and industrial electrical installations.Fit & Installation Note: Before ordering, confirm the selected wire gauge and connection size match your application. Designed for stranded copper wire and proper crimping tools only.✔ FIT & USE CONFIRMATION Matches the selected wire gauge and connector size shown above Designed for stranded wire and proper crimping tools Disconnect power before installation for safety
- WIRE SIZE: Fits 8 AWG (10 mm2) stranded wire.
- STUD SIZE: Fits #8 bolts for secure mounting.
- MATERIAL: Tin plated copper for corrosion resistance and reliable conductivity.
- SECURE CONNECTION: Closed-ring design resists vibration loosening in automotive, marine, and power applications.
- INSTALLATION: Can be crimped with insulated-terminal tools, or insulation may be removed for use with non-insulated crimpers. Disconnect power before working.
| Color | Red |
|---|---|
| Gauge | 8 |
| Terminal | Ring Terminal |
| Stud Size | #8, 4mm, M4 |
| Brand Name | Generic |
| Unit Count | 1.0 Count |
| Manufacturer | TAIXING LONGYI TERMINALS CO |
| Material Type | Copper, Polyvinyl Chloride |
| Connector Type | Ring |
| Maximum Voltage | 600 Volts |
| Contact Material | Plated Tin |
| Specification Met | UL, cUL, cULus |
| Temperature Rating | 75°C |
| Included Components | 500 × 8 AWG insulated ring crimp connectors (#8 / M4) |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 1.18"L x 0.39"W x 0.33"H |
