Simarine SCQ25 Quadro Shunt, Load & Solar Monitoring, 4 x 25 A per Channel, A Built-in, Programmable Alarm Signal Relay, Perfect for Retroffiting to Existing Boats & Campervans & Trailers & RVs.

SCQ25 is an innovative shunt module for monitoring individual consumers and generator with 4x current sensors up to 25A each. For 12V and 24V systems. Compatible with PICO Battery montoring and VIA (Caravan Control) systems.

• A true innovation on the market! Quadro low-amp shunt module is here for appliances monitoring. With it you can monitor the current flow of the 4 individual consumers or generators. The SCQ25 allows a maximum continuous current of 25 amps per channel. Compatible with PICO Battery montoring and VIA (Caravan Control) systems
• Connection possibilities: 4 appliances (such as fridge, cooktop, lights, solar) and 1 alarm signal relay.
• Built-in, programmable alarm signal relay: One of the special features of this module is a programmable alarm signal relay, which you can configure to output a signal of 1 amp if an alarm is triggered. The alarm signal relay’s voltage limit is 60 V.
• Convenient for wiring on retrofitting for existing boats, campervans, trailers, RVs.

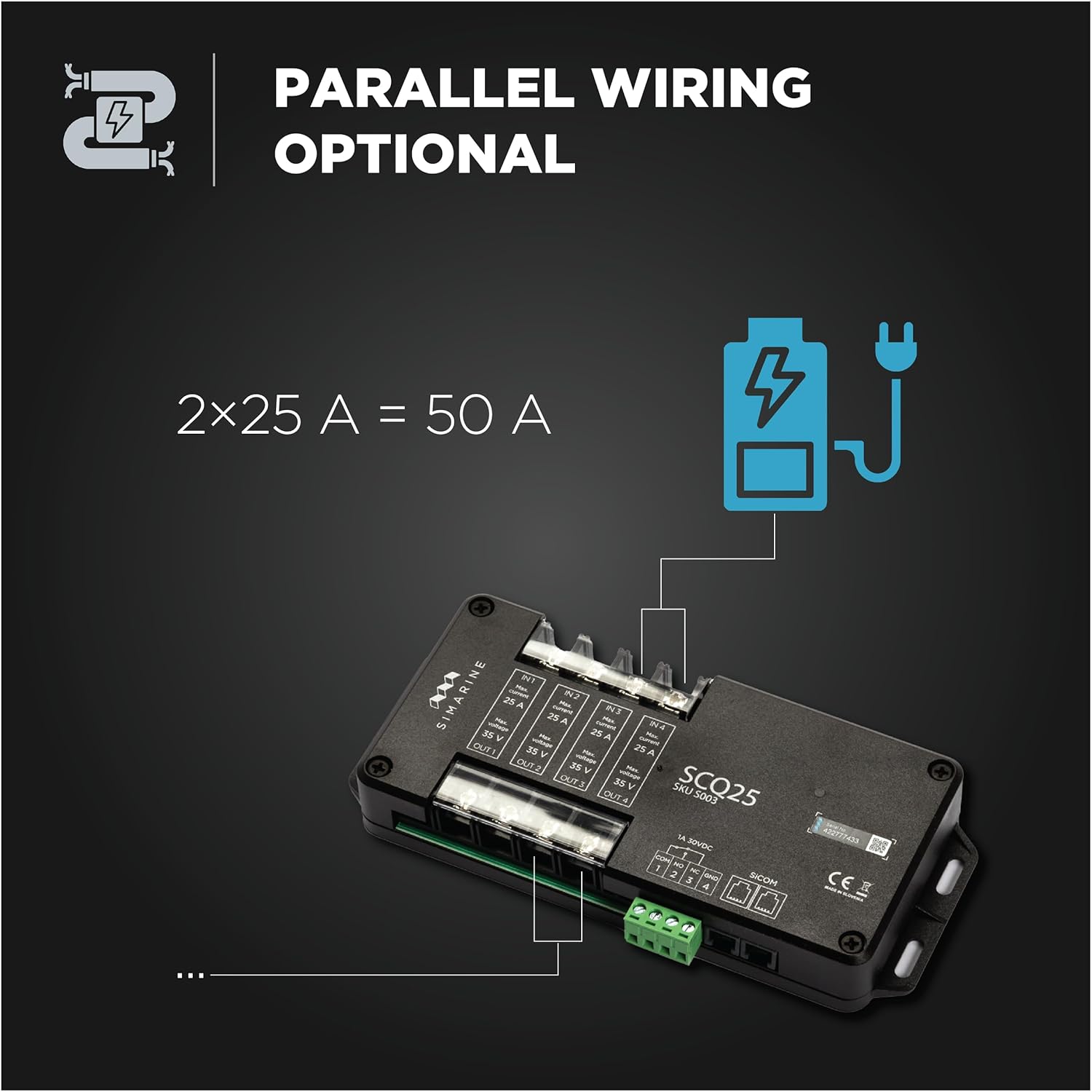

• Parallel wiring optional: If you need more than 25 amps per channel, you can wire the device in parallel across two channels and configure this setting in PICO to monitor these two channels as a single device, thus doubling the continuous current limit (2×25 = 50 A)
• What’s in the box: Quadro shunt module SCQ25, 5 m data cable, screws, 3-year warranty.
