Tripp Lite PDU Switched 1.9kW 120V 24 5-15/20R Outlets 20A w/ L5-20P, LX Platform Interface 0URM TAA (PDUMV20NETLX)
Product details
| Management number | 212394582 | Release Date | 2026/04/06 | List Price | $251.19 | Model Number | 212394582 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

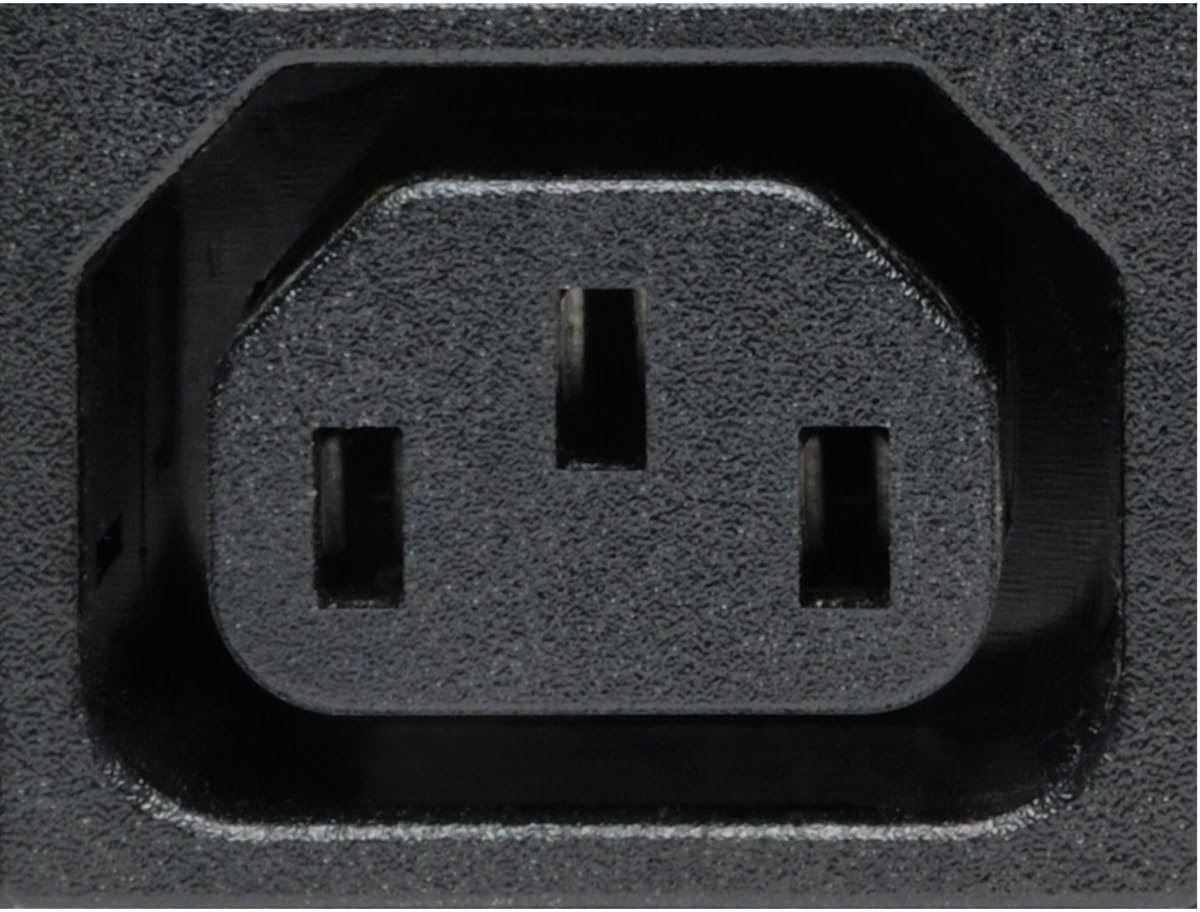

The PDUMV20NETLX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L5-20P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included tool less mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access. 2-Year Limited Warranty
- Distributes network-grade AC power: recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components.
- 1.9kW 120V switched PDU with single-phase input
- Individual outlets can be Remotely controlled to power up, power down, reboot or lock out devices

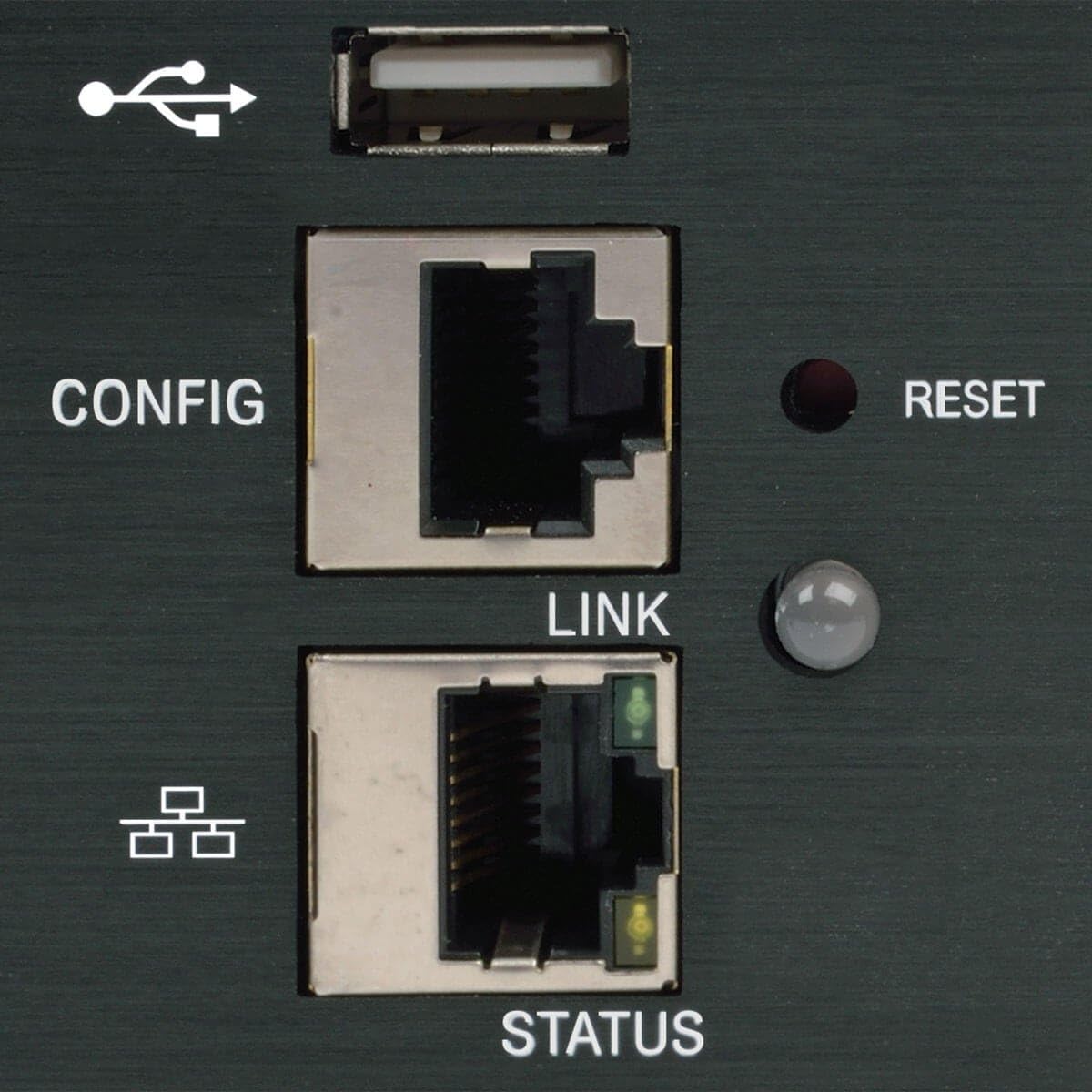

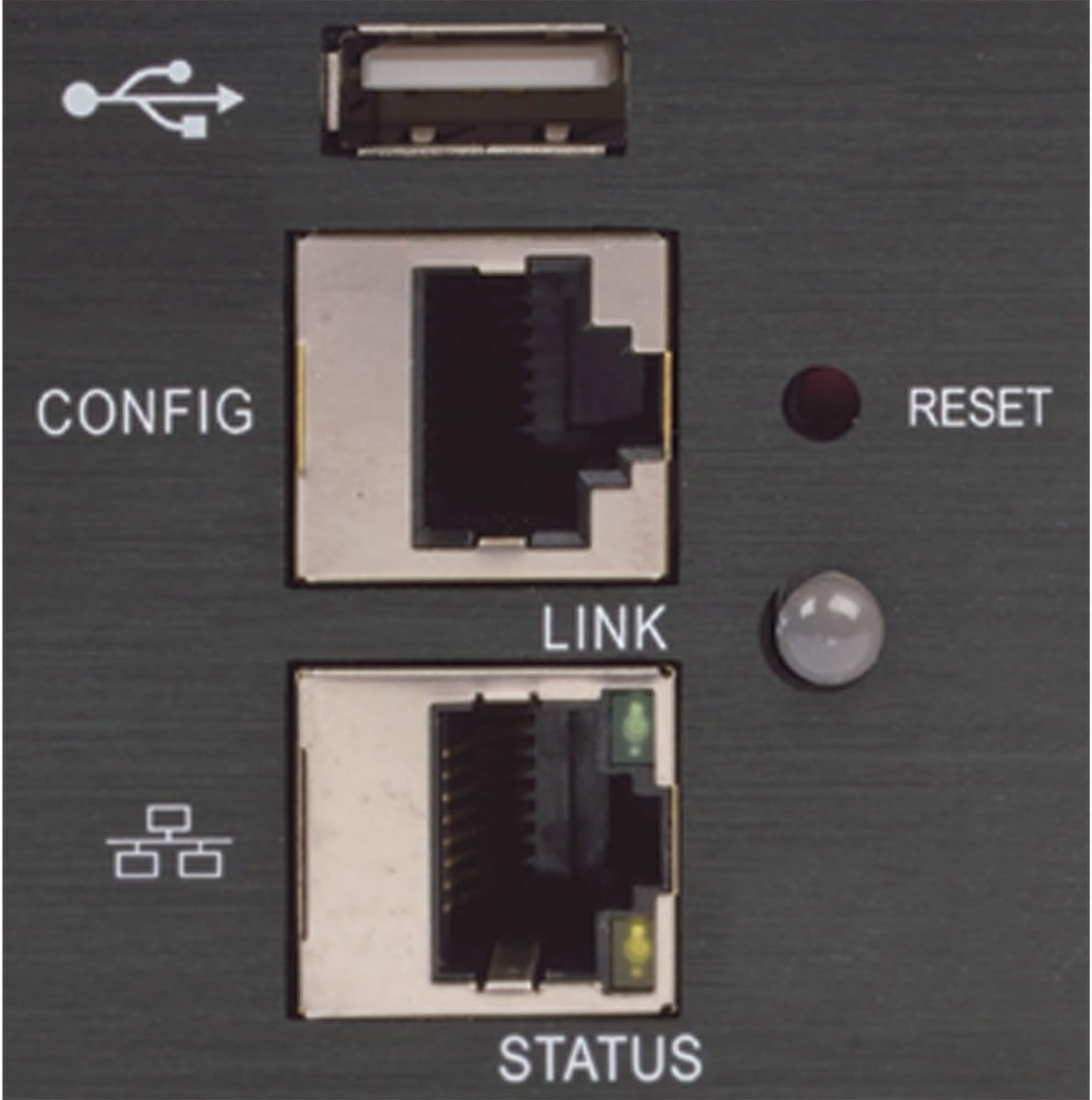

- Built-In LX Platform Interface Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH
- 2-year limited warranty
| UPC | 037332205315 |
|---|---|
| Brand | TRIPP LITE |
| Unit Count | 1 Count |
| Item Weight | 10 Pounds |
| Manufacturer | Tripp Lite |
| Model Number | PDUMV20NETLX |
| BuiltIn Media | ^PDUMV20NETLX 1.9kW Single-Phase Switched PDU ^Built-in LX Platform interface ^NEMA L5-20R to 5-15/20P plug adapter ^Configuration cable ^(24) Cable ties ^(2) Cord retention brackets ^Rack-mounting hardware ^PDUMVROTATEBRKT mounting bracket accessory ^Owner’s manual |
| Input Voltage | 120 Volts |
| Warranty Type | Limited |
| Connector Type | L5-30P |
| Current Rating | 20 Amps |
| Item Type Name | Tripp Lite PDU Switched 1.9kW 120V 24 5-15/20R Outlets 20A w/ L5-20P, LX Platform Interface 0URM TAA (PDUMV20NETLX) |
| Item Dimensions | 2.65 x 2.19 x 70 inches |
| Number of Items | 1 |
| Number of Ports | 24 |
| Power Plug Type | Type L |
| Package Quantity | 1 |
| Compatible Devices | Monitor |
| Warranty Description | 2-year limited warranty |
| Global Trade Identification Number | 00037332205315 |
